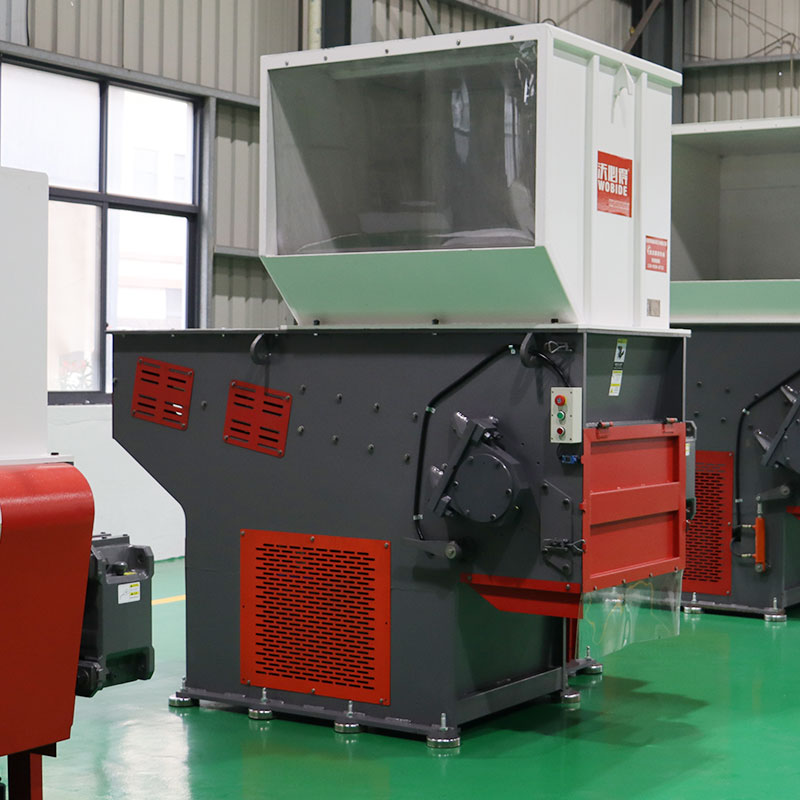

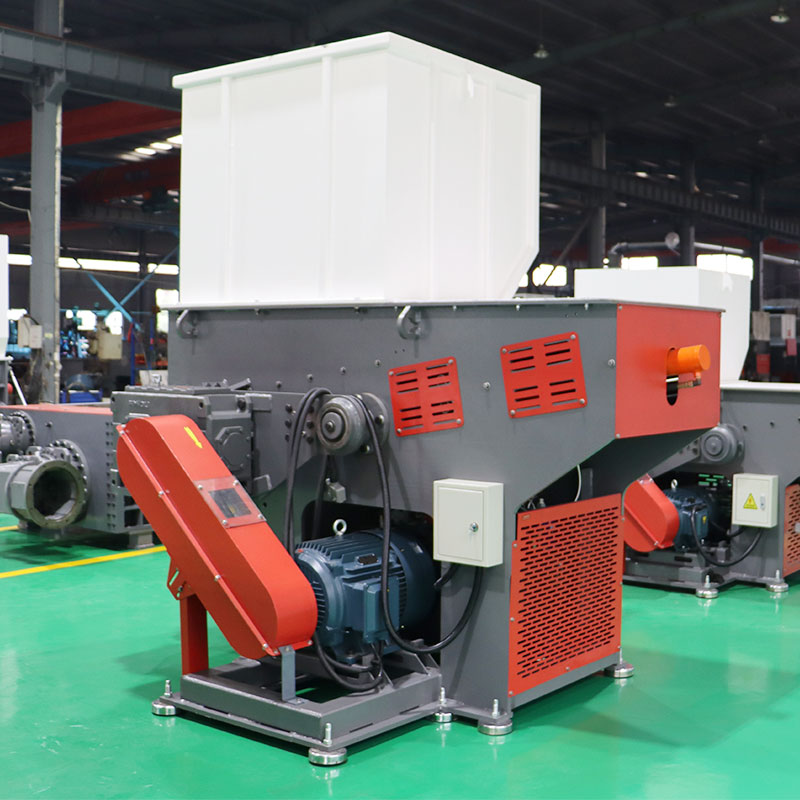

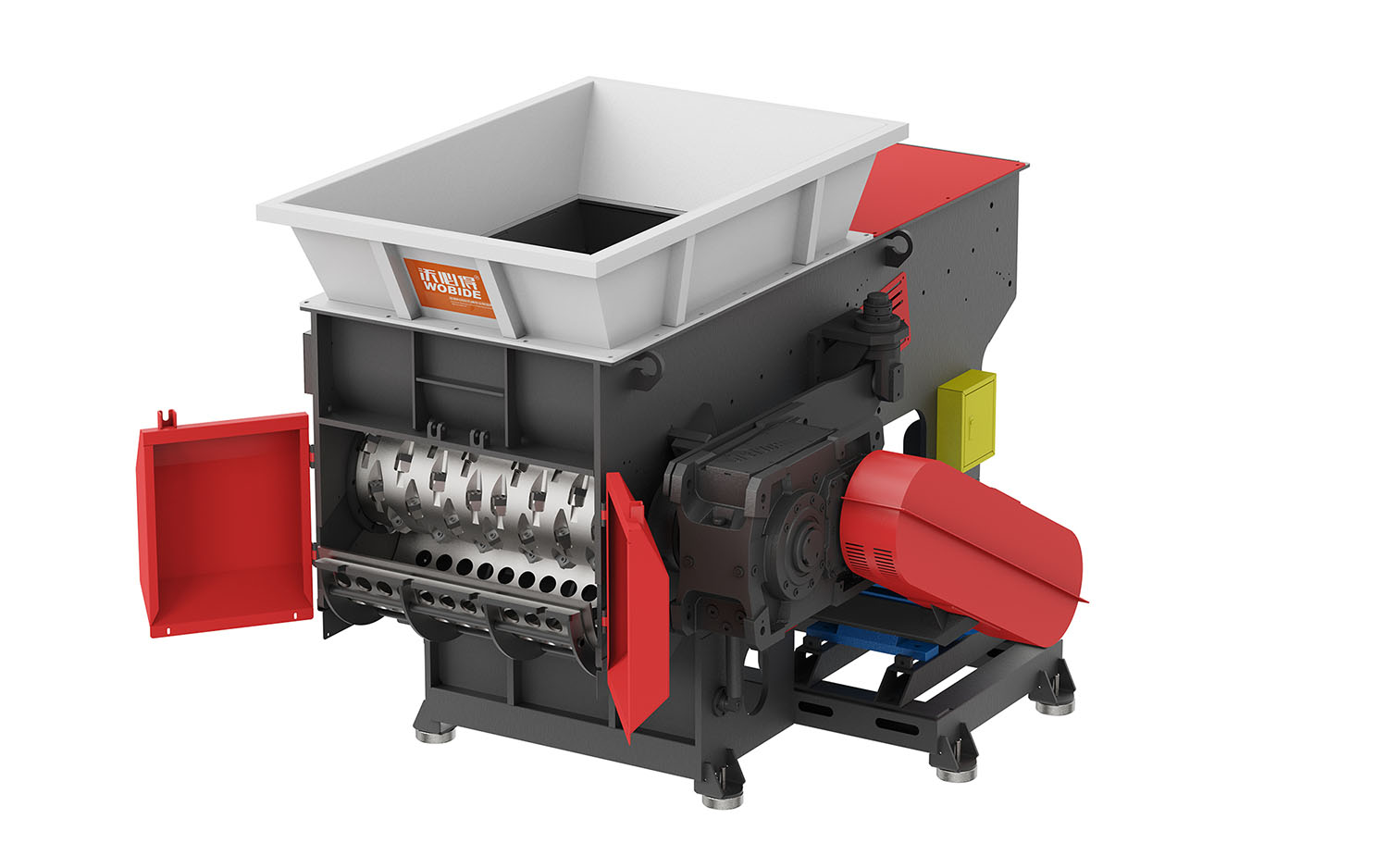

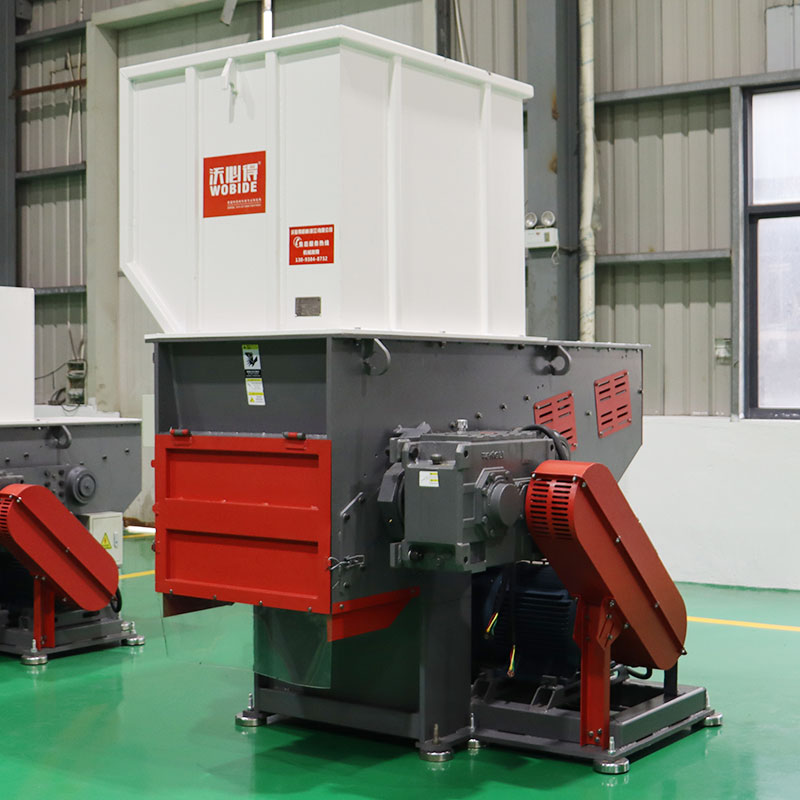

Wobide Machinery High Productivity PP PVC PET PU Shredder industrial plastic shredder machine

1.WPS whole series shredder use high-quality alloy steel and equipped with D2/DC53 blades,also offer different design solution according to different materials.
2.The series single-shaft shredders were developed with premium quality,wide range of applications, low speed（Main shaft speed：78rpm）, high torque, and low noise.
3.Capacity：300-3000 kg/h

QUOTE NOW

PRODUCT DESCRIPTION

Application:

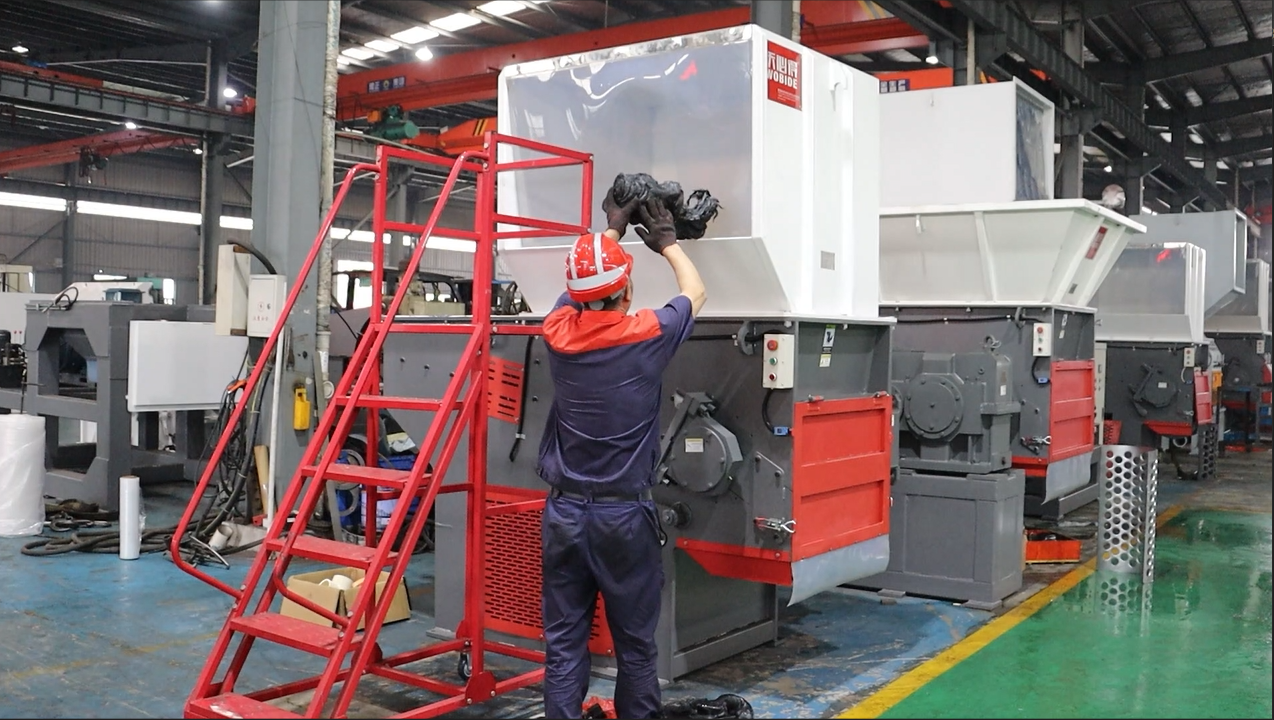

Pieces from injection molding machine
Thick wall plastic sheet

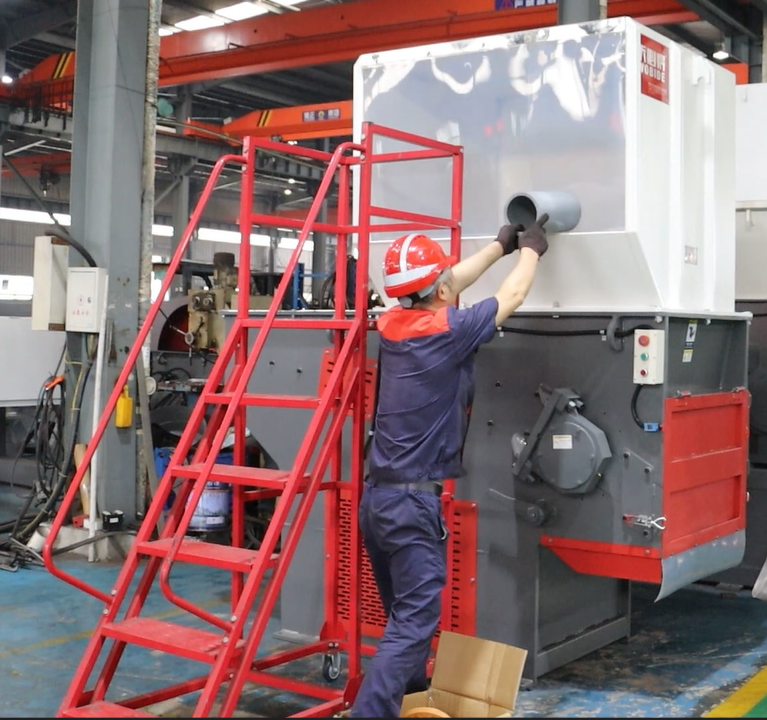

Pipe
Hollow plastic products
Chemical blue barrel
Plastic pallet
Film
Wood
Kitchen and household waste

Features:

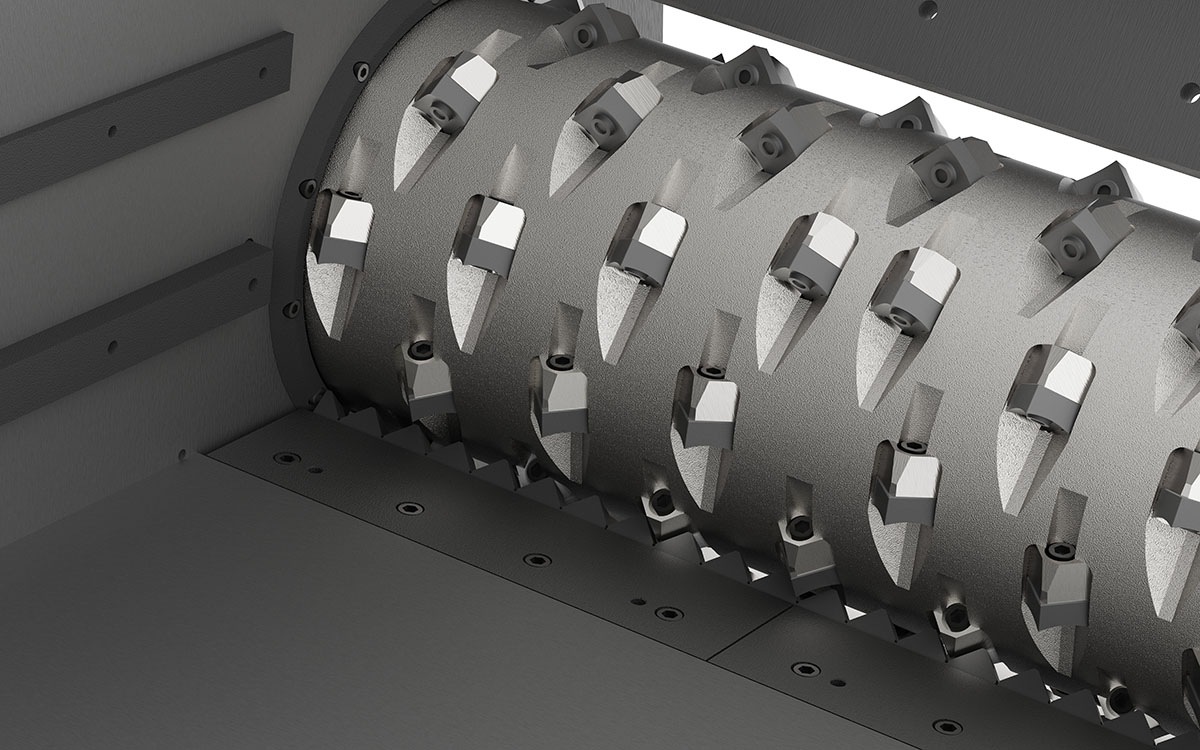

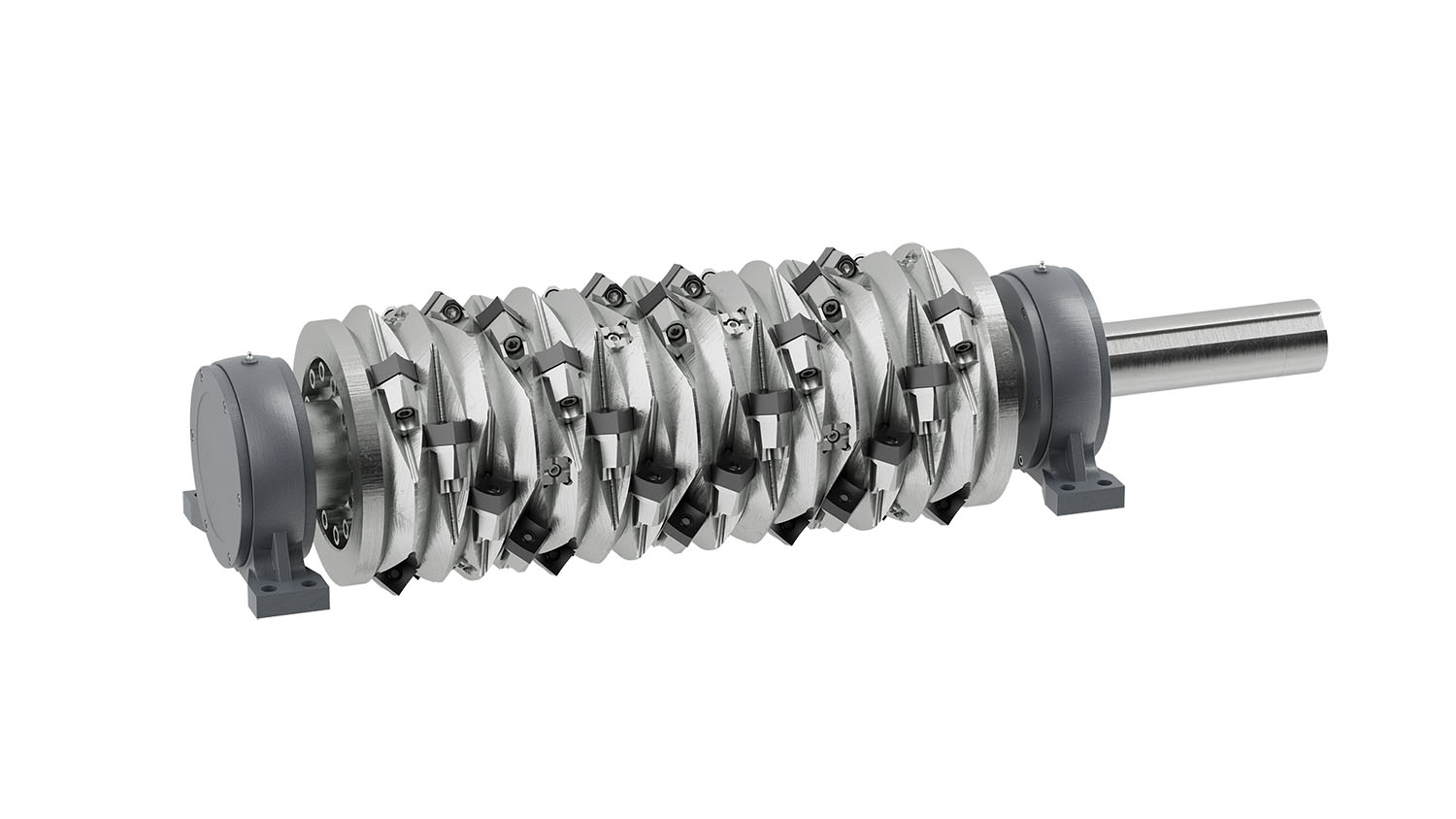

	01 Customized Spindle Rotor The spindle rotor adopts different design in accordance with different material. The rotor knife can be used symmetrically.

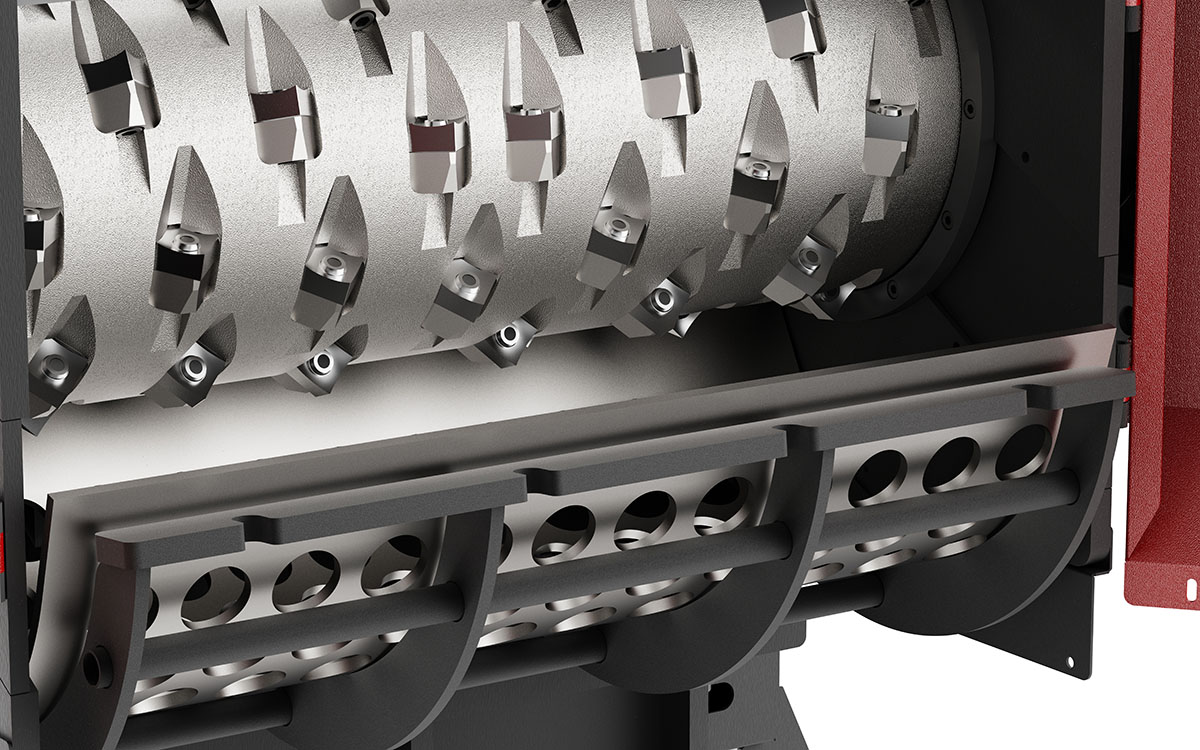

02 Hydraulic Mechanics Screen Changer The hydraulic system could achieve fast screen replacement and short-time maintenance through automatical opening and closing.
	03 Customized Spindle Rotor The spindle rotor adopts different design in accordance with different material. The rotor knife can be used symmetrically.
04 External Bearing House The bearing house was installed outside the cabinet, sealed by rubber ring to prevent the crushed material into the bearing box,ensure a longer service life.

Product specification:

Model	WPS600	WPS800	WPS1000	WPS1200	WPS1600
Main Shaft Length(mm)	600	800	1000	1200	1600
Tactical Diameter(mm)	280	400	450	450	645
Main Shaft Speed(rpm)	78	78	78	78	78
Ram Travel(mm)	600	800	1000	1200	1600
Rotor Blades(pcs)	39	51/57	63/92	81/116	140/156
Fixed Blades(pcs)	2	2	3	4	5
Motor Power(kw)	22	37	55/75	75/90	75*2
Hydraulic Power(kw)	2	3	4	4	5
Screen Mesh Diameter(mm)	30-80	30-80	30-120	30-120	30-120
Cutting Chamber Dimension(mm)	600*600	800*800	1000*1000	1200*1250	1600*1400
Overall Dimension(mm)	175014001780	243017202480	288021802570	335023002660	380033003250
Weight(kg)	2800	5000	7000	8000	11500
