Shredder-Crusher Integrated Machine For Fecycling Various Types Of Plastics

QUOTE NOW

PRODUCT DESCRIPTION

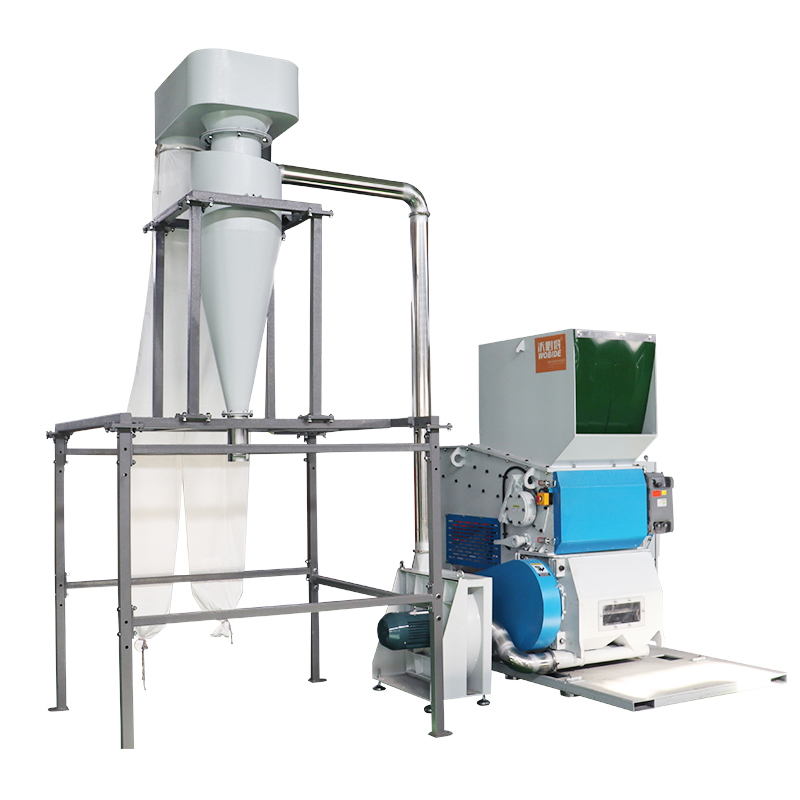

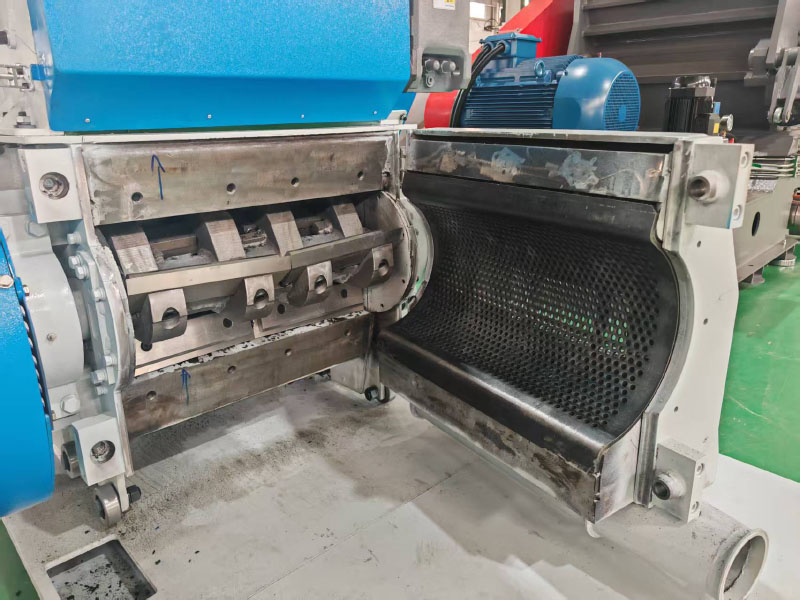

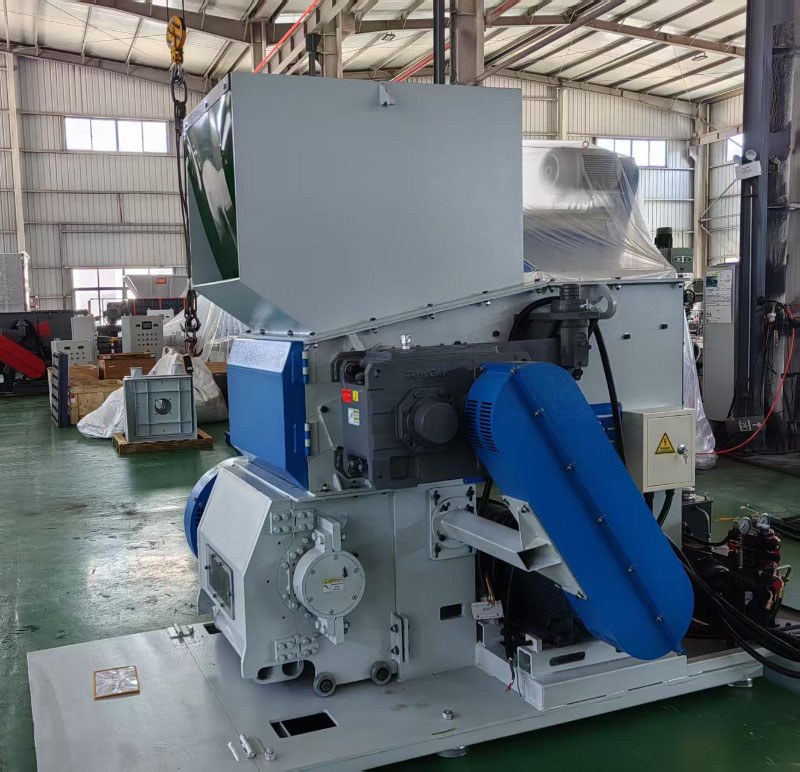

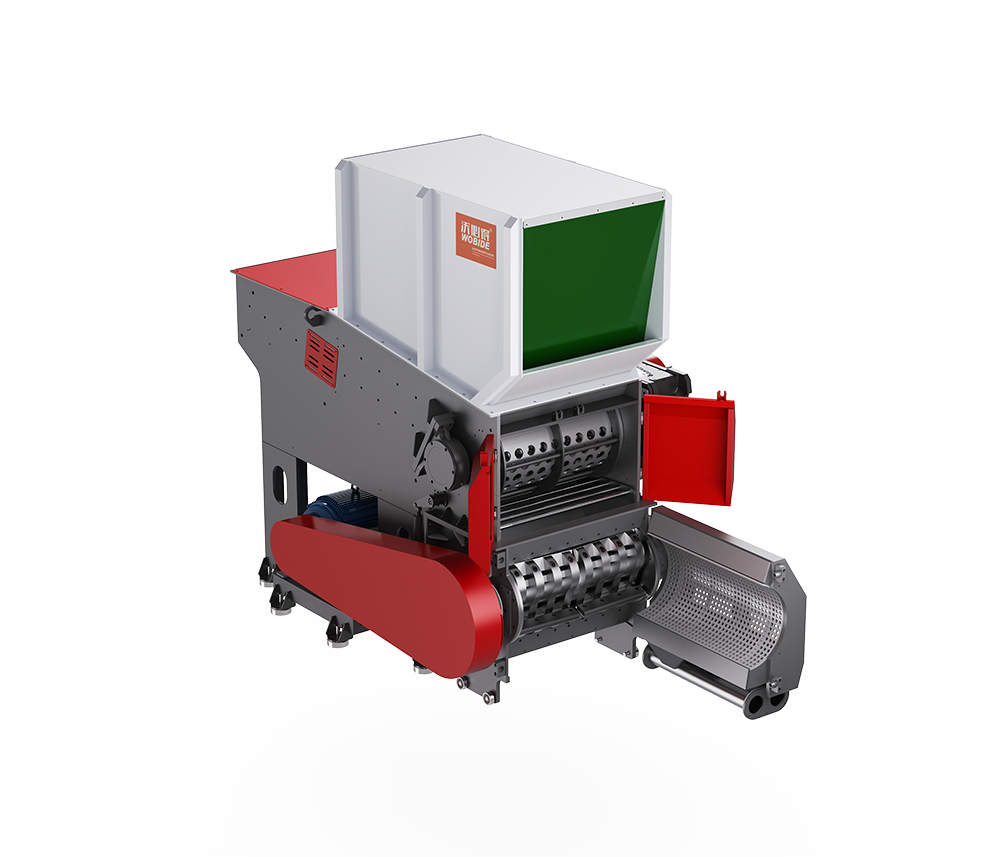

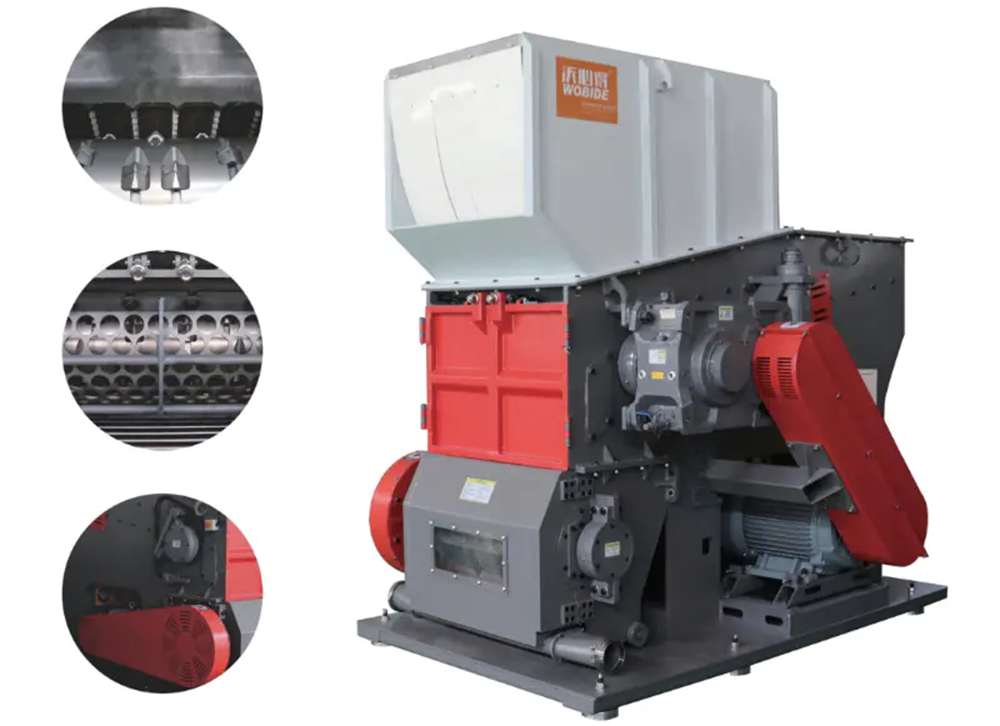

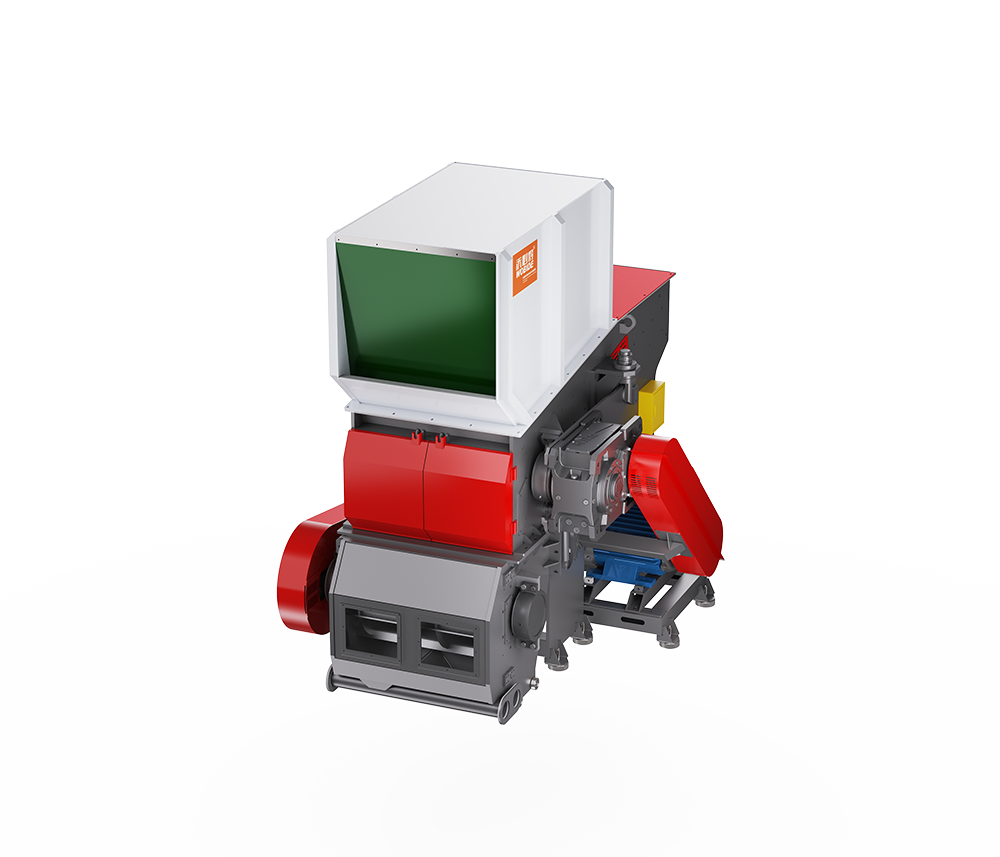

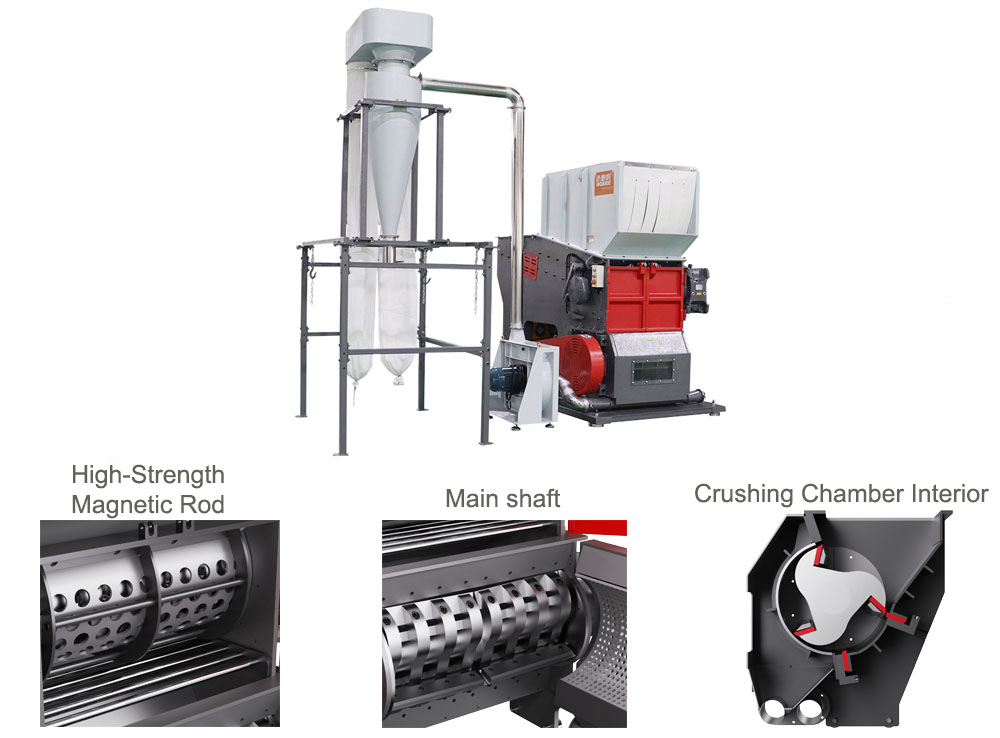

The WSS Series Shredder-Crusher Integrated Machine is a high-efficiency device that combines shredding and crushing functions, making it ideal for recycling various types of plastics. The upper section is the shredding zone, equipped with a high-torque shredding shaft, wear-resistant alloy blades, and a forced feeding pusher to ensure efficient material shredding. The lower section is the crushing zone, featuring high-speed rotating blades that further break down the pre-shredded material into uniform small particles, which are then

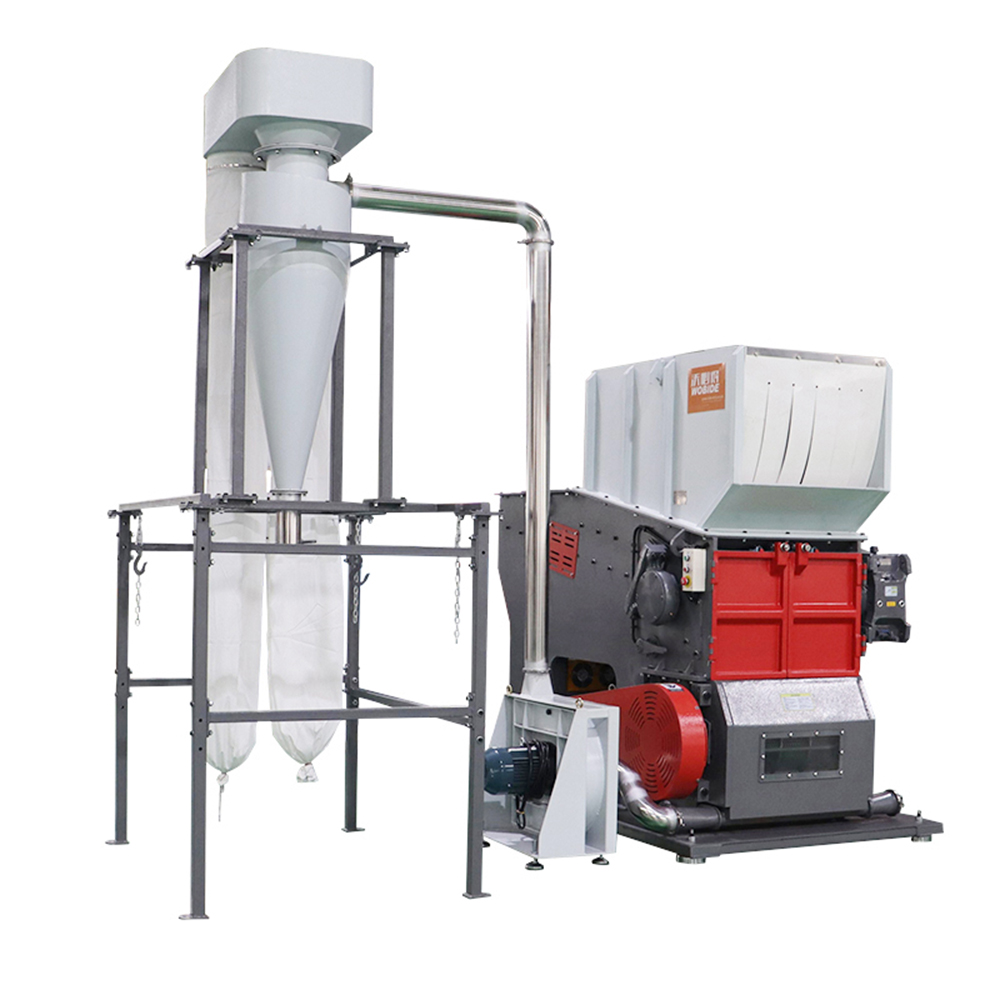

collected and bagged through the cyclone system.
With a compact structure, space-saving design, and user-friendly operation, it is an ideal solution for plastic recycling and processing.

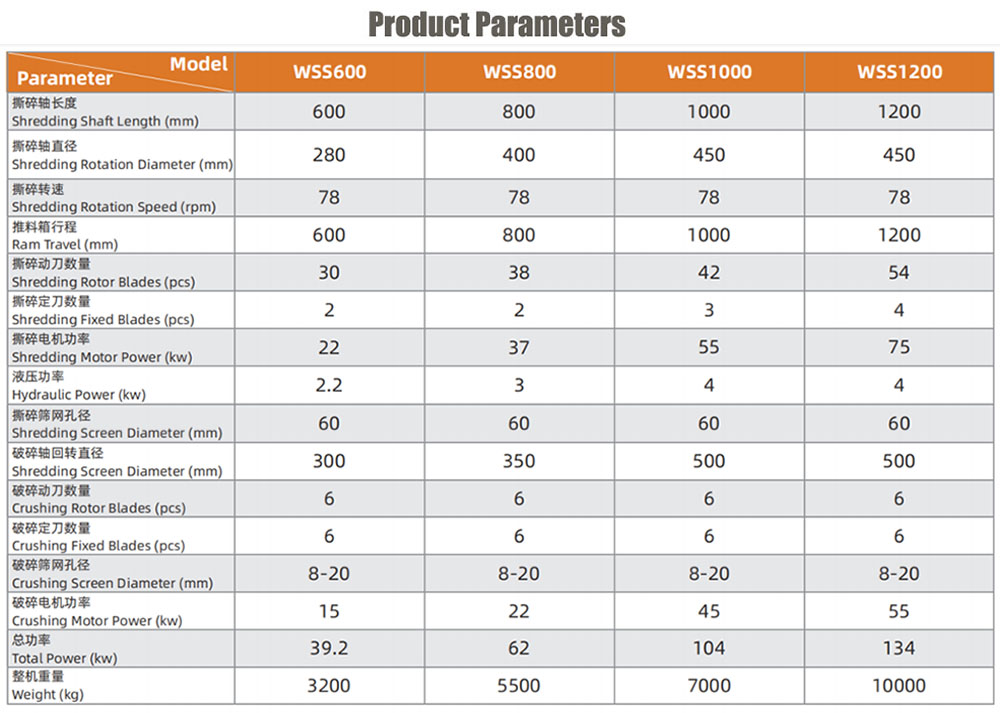

Technical Parameter

Parameter/Model	WSS600	WSS800	WSS1000	WSS1200
Shredding Shaft Length (mm)	600	800	1000	1200
Shredding Rotation Diameter (mm)	280	400	450	450
Shredding Rotation Speed (rpm)	78	78	78	78
Ram Travel (mm)	600	800	1000	1200
Shredding Rotor Blades (pcs)	30	38	42	54
Shredding Fixed Blades (pcs)	2	2	3	4
Shredding Motor Power (kw)	22	37	45	55
Hydraulic Power (kw)	2.2	3	4	4
Shredding Screen Diameter (mm)	60	60	60	60
Crushing Rotation Diameter (mm)	300	350	500	500
Crushing Rotor Blades (pcs)	6	6	6	6
Crushing Fixed Blades (pcs)	6	6	6	6
Crushing Screen Diameter (mm)	8-20	8-20	8-20	8-20
Crushing Motor Power (kw)	15	30	45	55
Total Power (kw)	39.2	70	94	114
Overall Dimension (LWH)(mm)	150021002200	185028002600	200029003200	230035003200
Weight (kg)	3200	5500
