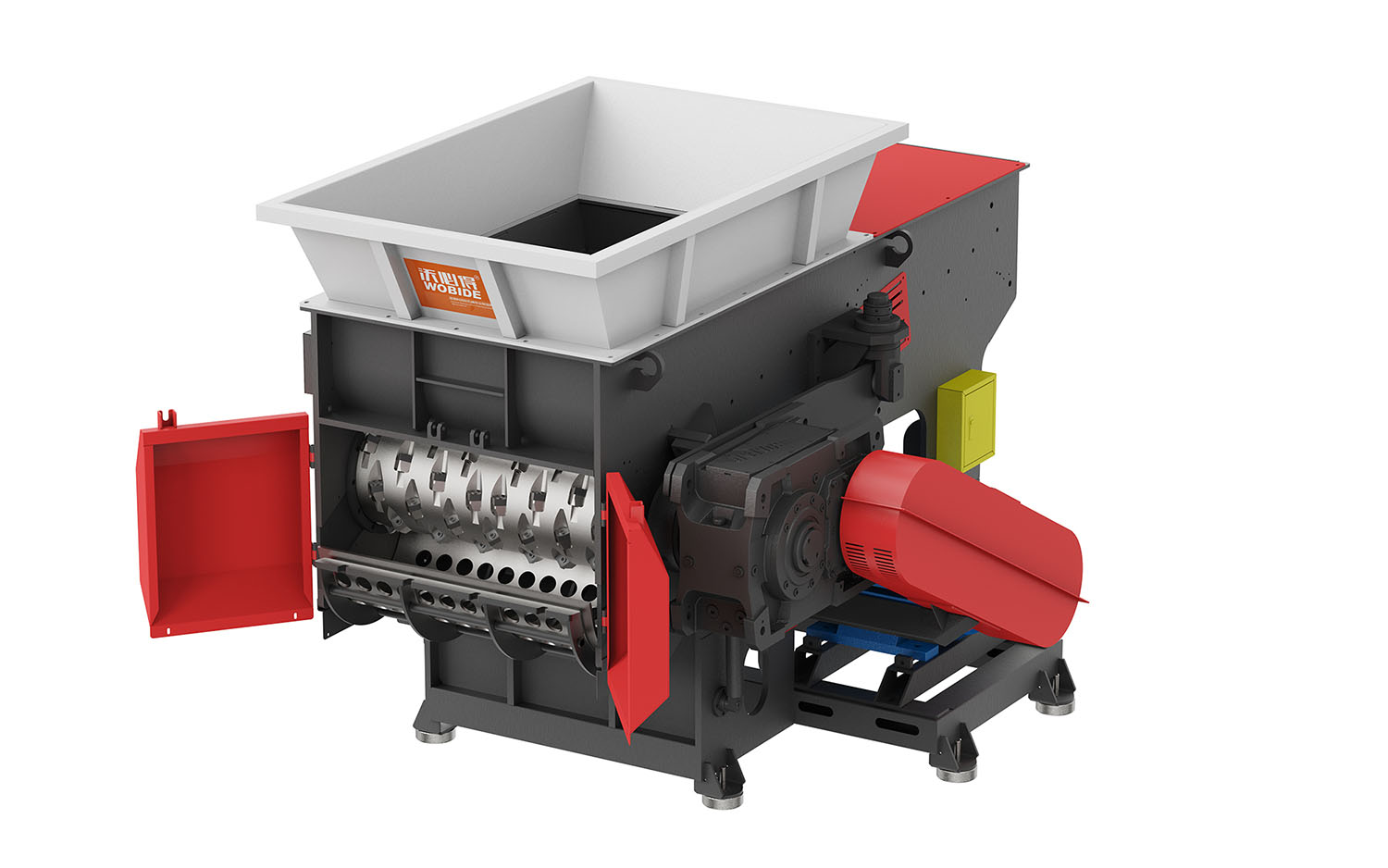

Industrial Plastic Bottle Shredder WPS1000

1.WPS whole series shredder use high-quality alloy steel and equipped with D2/DC53 blades,also offer different design solution according to different materials.
2.The series single-shaft shredders were developed with premium quality,wide range of applications, low speed（Main shaft speed：78rpm）, high torque, and low noise.
3.Capacity：300-3000 kg/h

QUOTE NOW

PRODUCT DESCRIPTION

Application:

Pieces from injection molding machine
Hick wall plastic sheet
Pipe
Hollow plastic products
Chemical blue barrel
Plastic pallet
Film
Wood
Kitchen and household waste

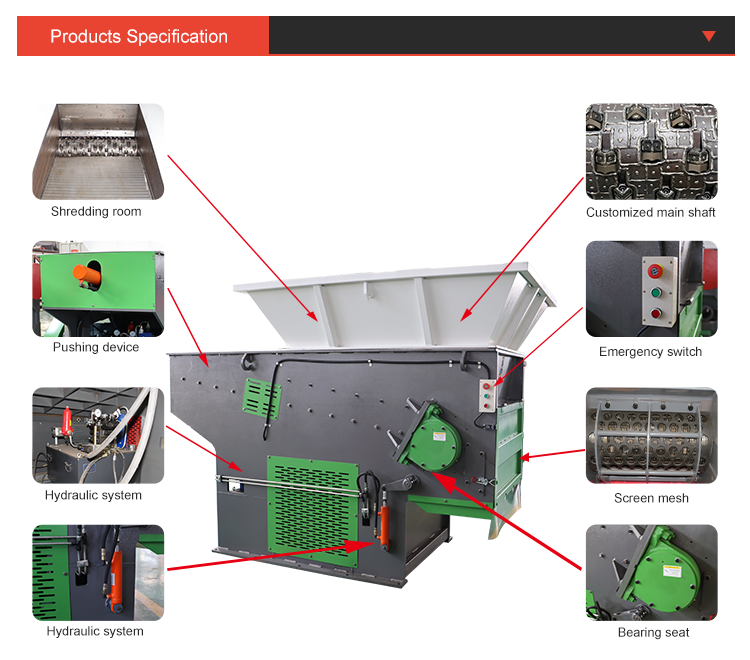

Features:

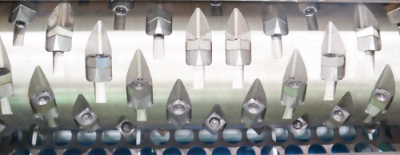

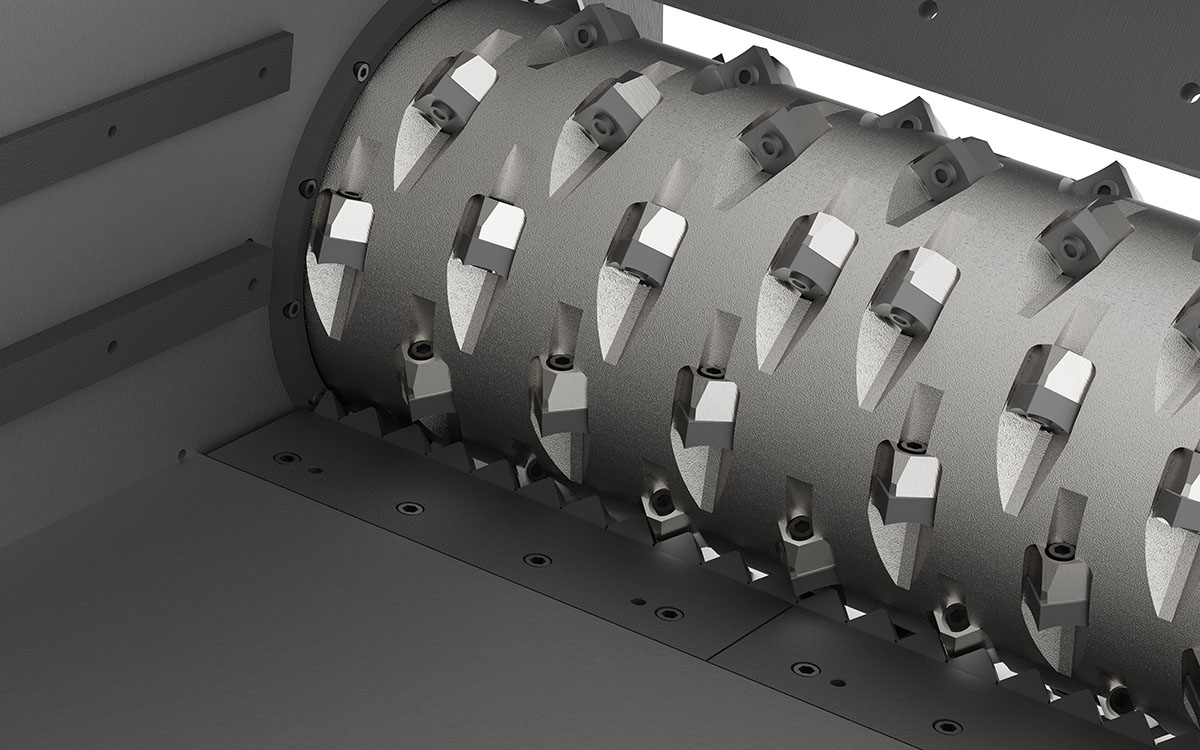

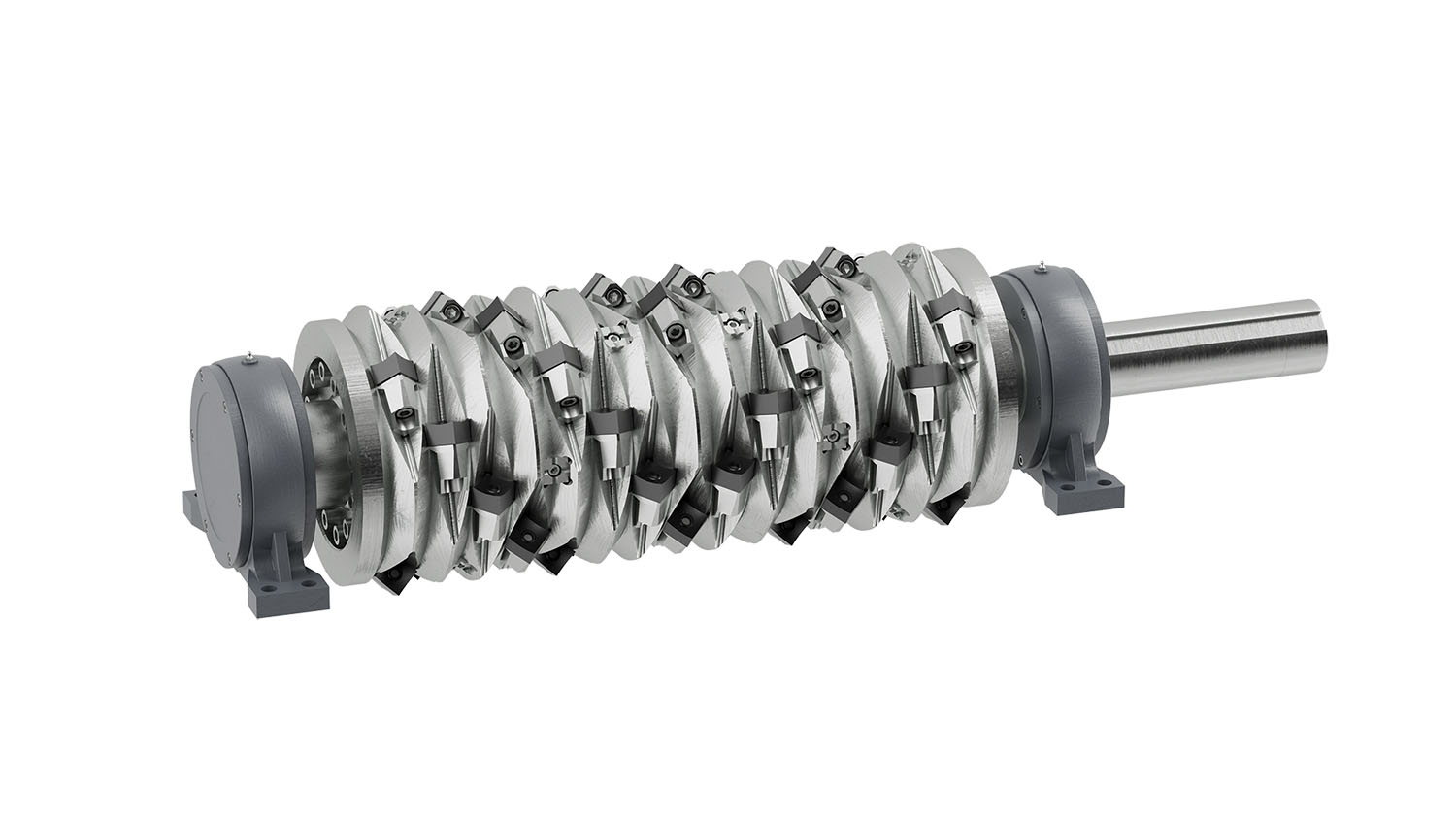

	1. Customized Spindle Rotor The W type for soft material and the blade seat type for block material.
2.Rotor Change Angle Rotor can be reuse by change the angle according to the wearing condition, which can saving cost by a lot.

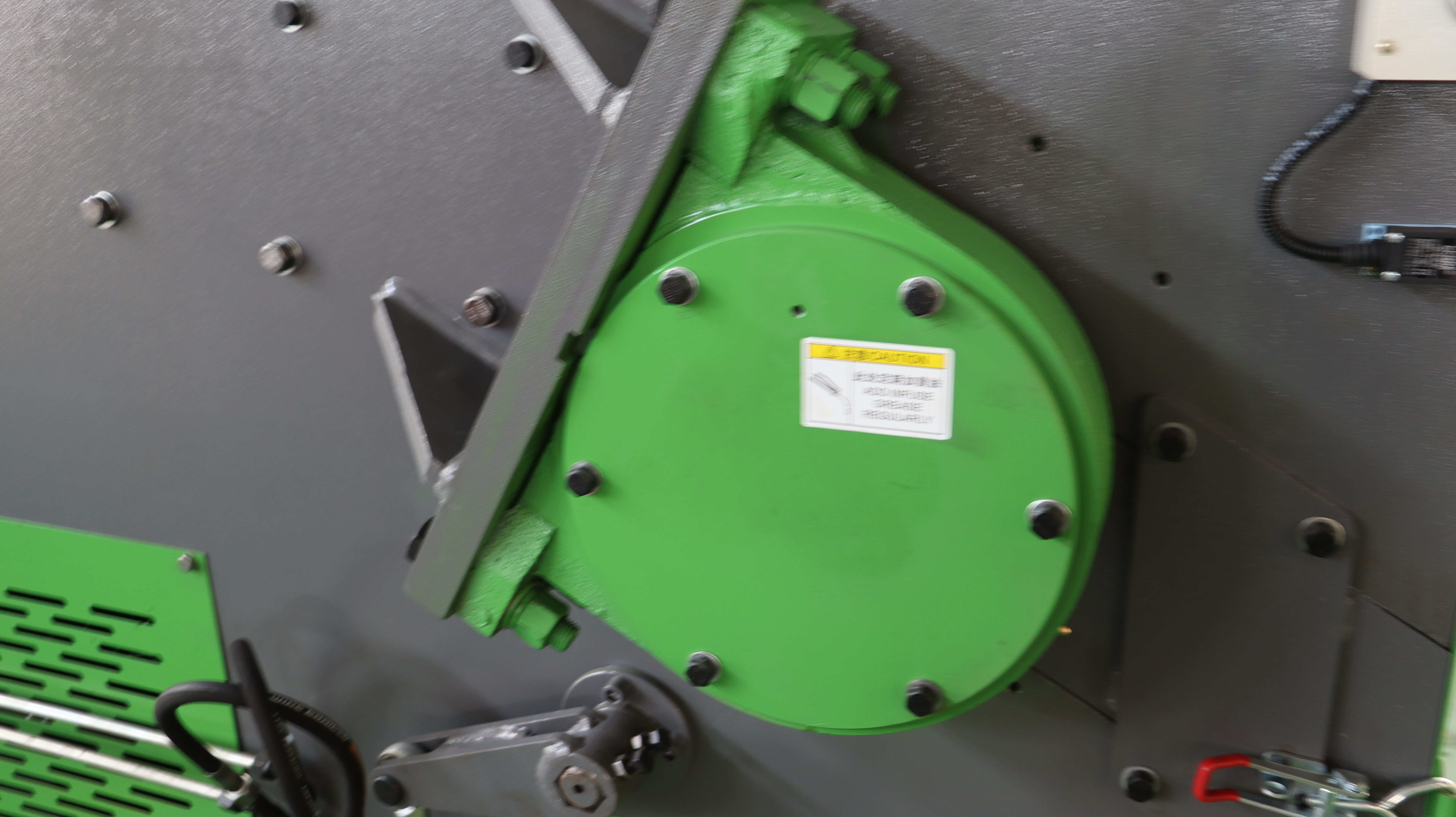

	3.External bearing seat. Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.

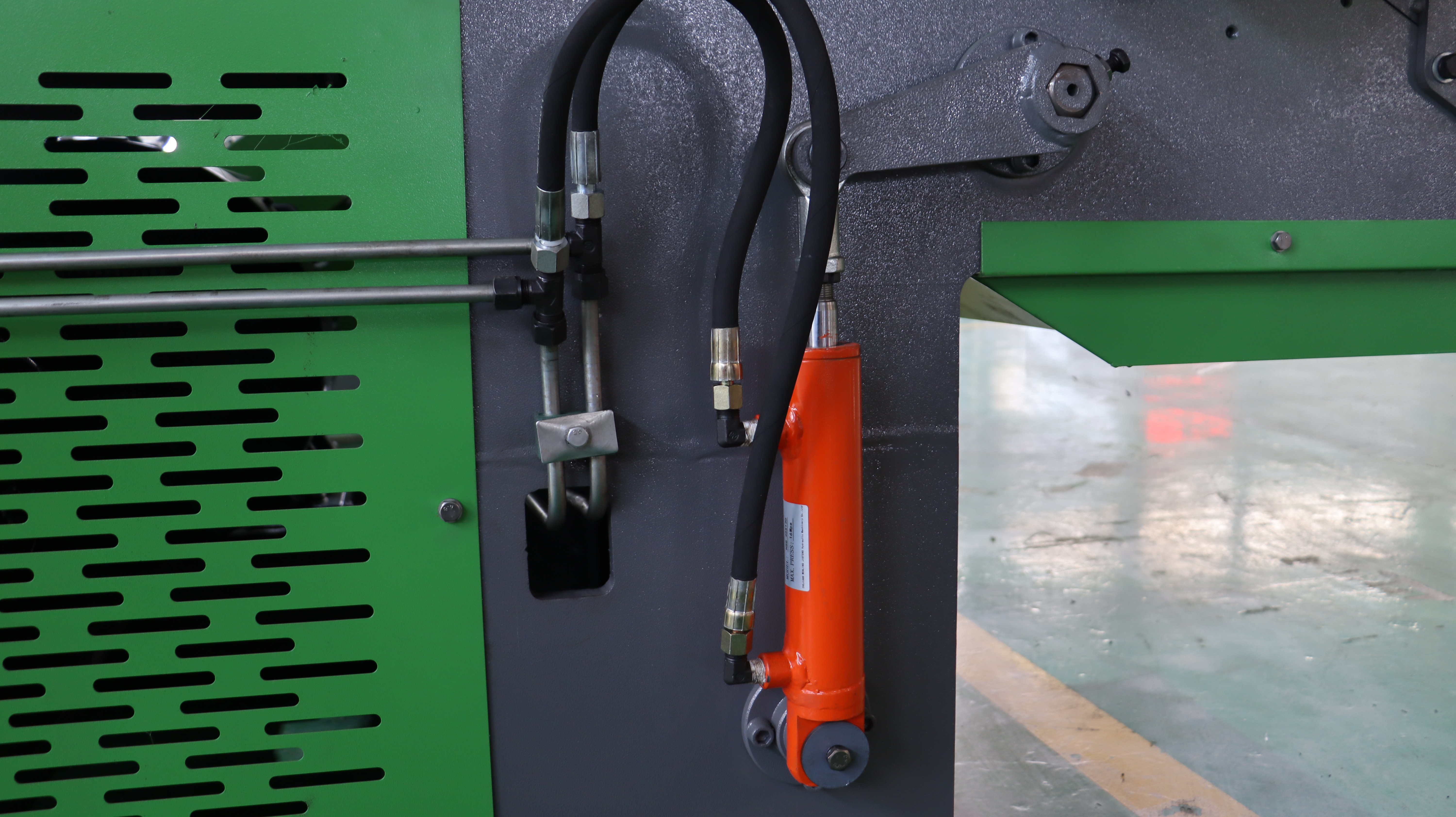

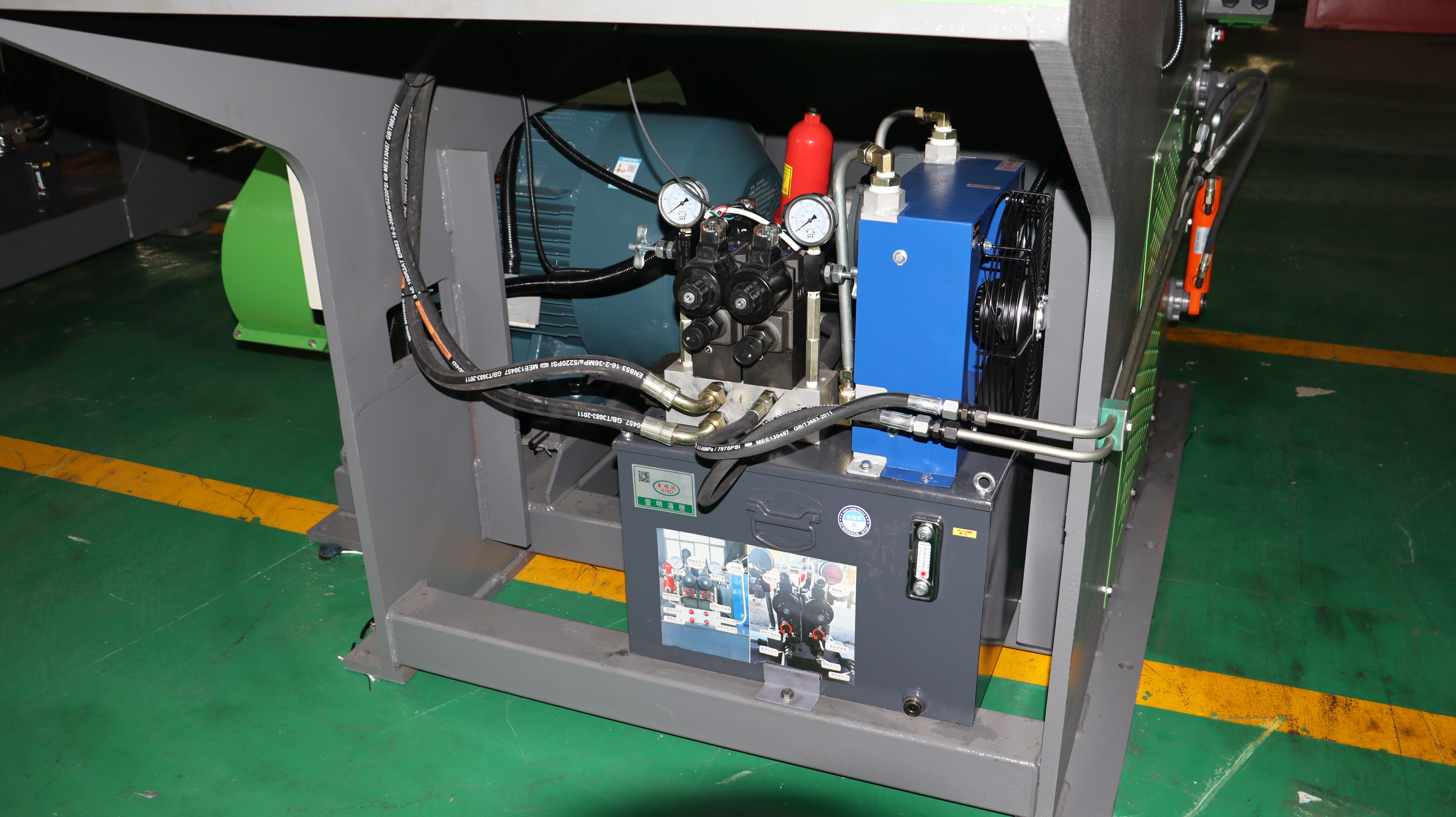

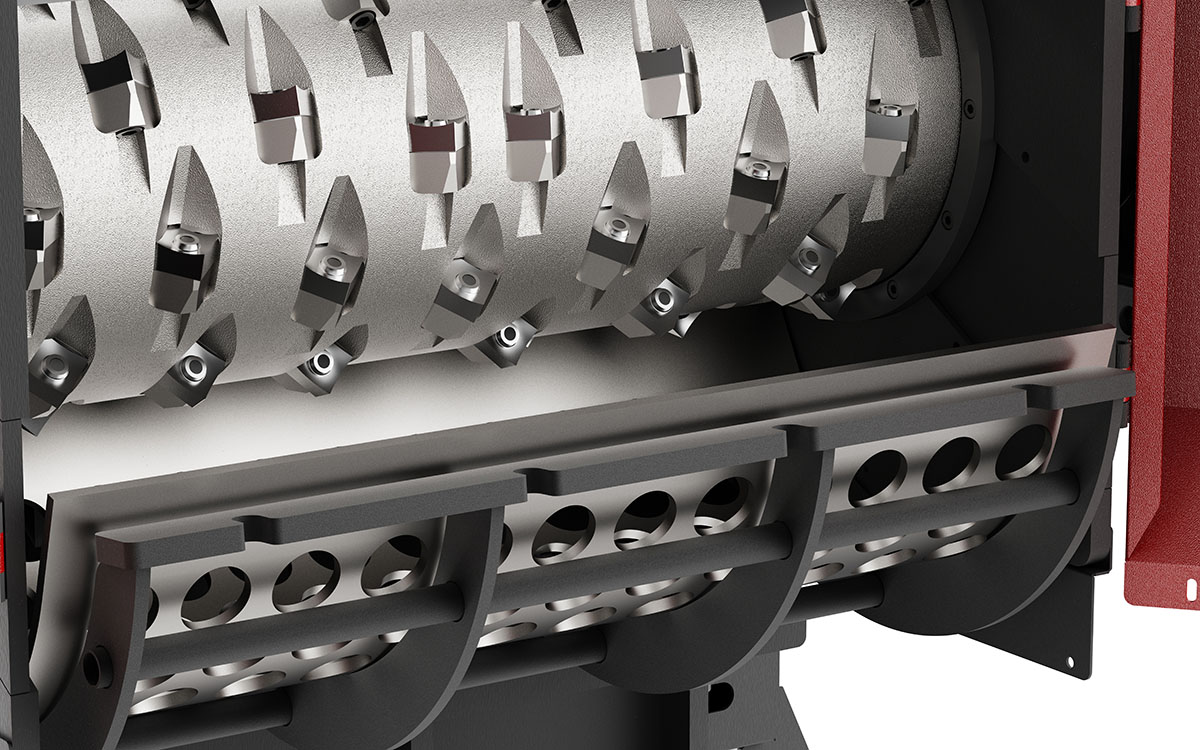

4.Hydraulic Opening System The maintenance time can be saved by adopt of hydraulic system to provide quick screen change.

Product specification:

Model/Parameter	WPS600	WPS800	WPS1000	WPS1200
Main Shaft Length(mm)	600	800	1000	1200
Main Shaft Tactical Diameter(mm)	280	400	450	450
Main Shaft Speed(rpm)	78	78	78	78
Ram Travel(mm)	600	800	1000	1200
Rotor Blades(pcs)	39	51/57	63/92	81/116
Fixed Blades(pcs)	2	2	3	4
Motor Power(kw)	22	37	55/75	75/90
Hydraulic Power(kw)	2	3	4	4
Screen Mesh Diameter(mm)	30-80	30-80	30-120	30-120
Cutting Chamber Dimension(mm)	600*600	800*800	1000*1000	1200*1250
Overall Dimension(LWH)(mm)	175014001780	243017202480	288021802570	335023002660
Weight(kg)	2800	5000	7000	8000
