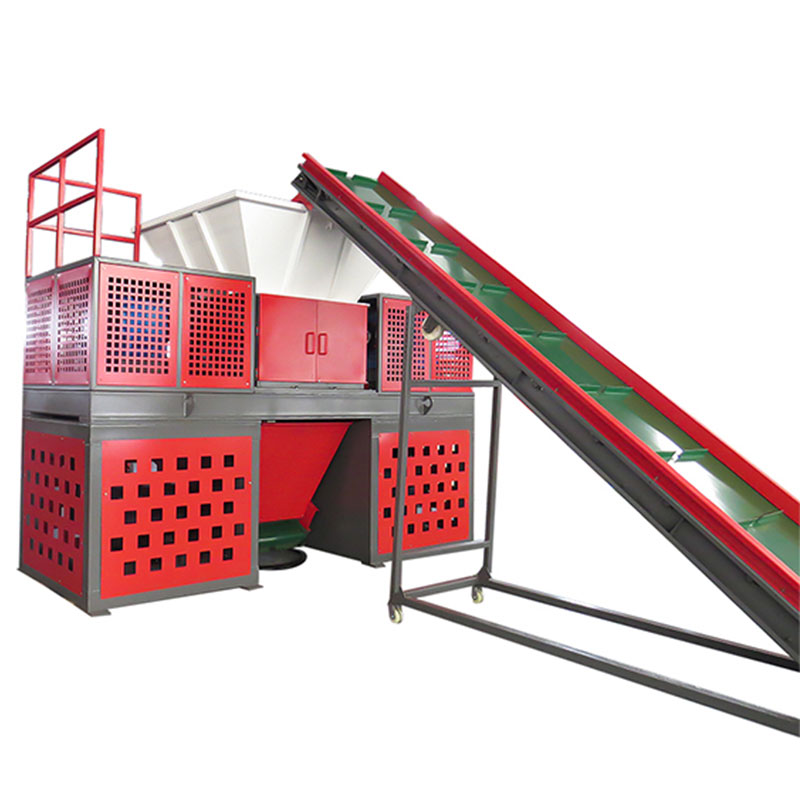

Twin Shaft Shredder WPT1200/450

1.WPT Double-roll shredders are specially designed for the materials like woven bags, film, container bag, those comparatively soft material.
2.It has a unique double-roll spindle are all procesessed with special techology, which ensures a long service life,anti-winding,compact structure.
3.To meet customer recycling requirements if various waste,it has the high efficiency,simple and safe operation.
4.Can process 600-4000kg per hour according to different materials.

QUOTE NOW

PRODUCT DESCRIPTION

Application:

Film
Woven bags
Paper products
Soft plastic material
Packing belt

Features:

	1.Double-roller design The tearing effect on crushed materials with higher efficiency,suitable for easy-winding materials.
2.Saving cost The rotary can be used for mulltiple times by changing the angle according to the wear condition,saving cost.
	3.External bearing seat Use sealed by rubber ring to prevent the crushed material into the bearing box,ensure a longer service life.
4. Hydraulic Opening System The Hydraulic System could achieve fast screen exchanging,short-time maintenance through automatically opening and closing,adjust the pushing speed in according with different pushing speed to avoid overload.

Product specification：

Model/Parameter	WPT800/400	WPT1000/450	WPT1200/450
Main Shaft Length(mm)	800	1000	1200
Main Shaft Tactical Diameter(mm)	400	450	450
Main Shaft Speed(rpm)	40	40	40
Rotor Blades(pcs)	78	96	112
Fixed Blades(pcs)	3+3	4+4	4+4
Motor Power(kw)	45+45	55+55	75+75
Hydraulic Power(kw)	1.5	1.5	1.5
Screen Mesh Diameter(mm)	50-100	50-100	50-100
Cutting Chamber Dimension(mm)	810*1170	1010*1490	1210*1490
Overall Dimension(LWH)(mm)	240021602400	380021802650	450021802650
Weight(kg)	5500	6500	10000
