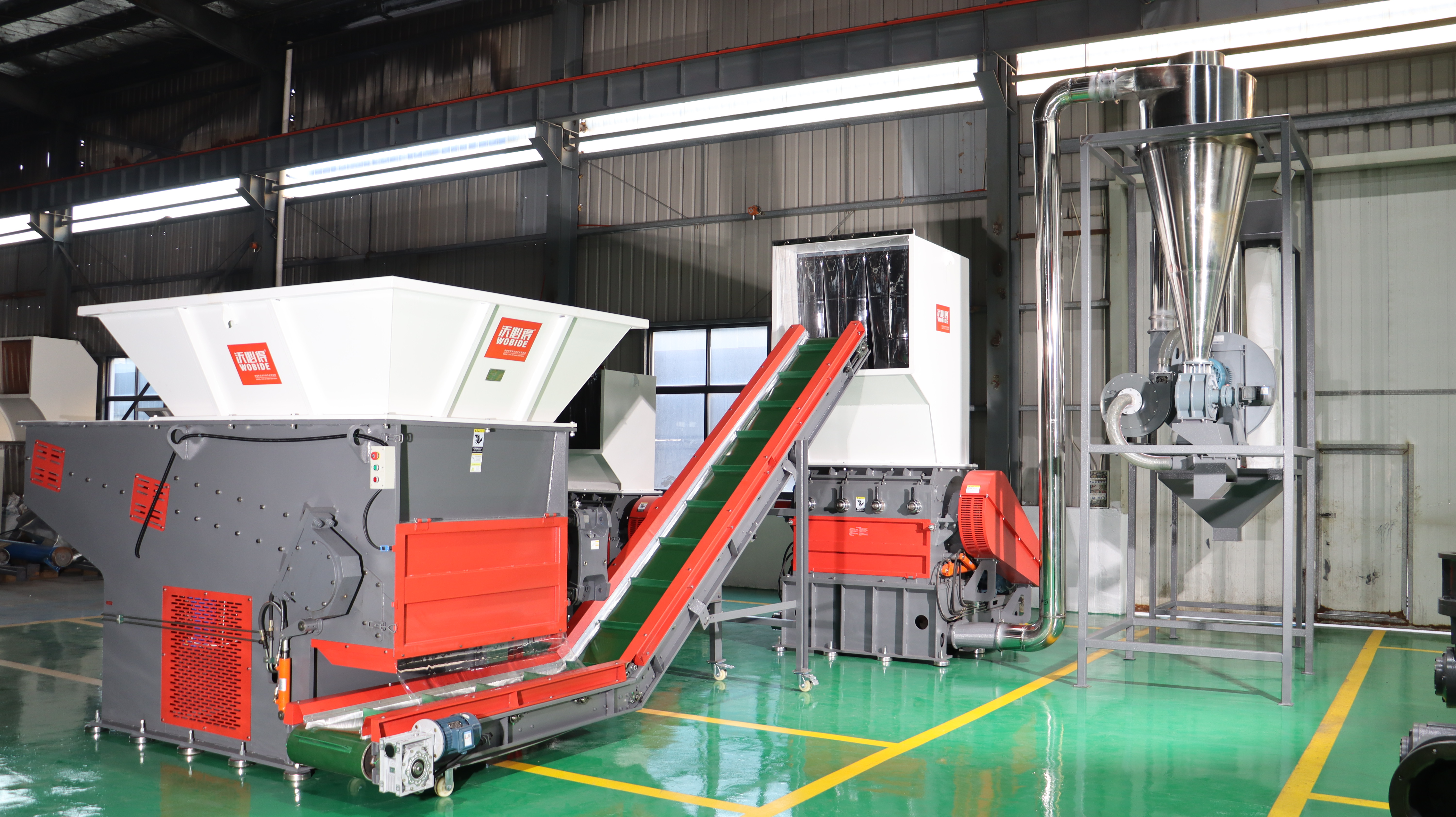

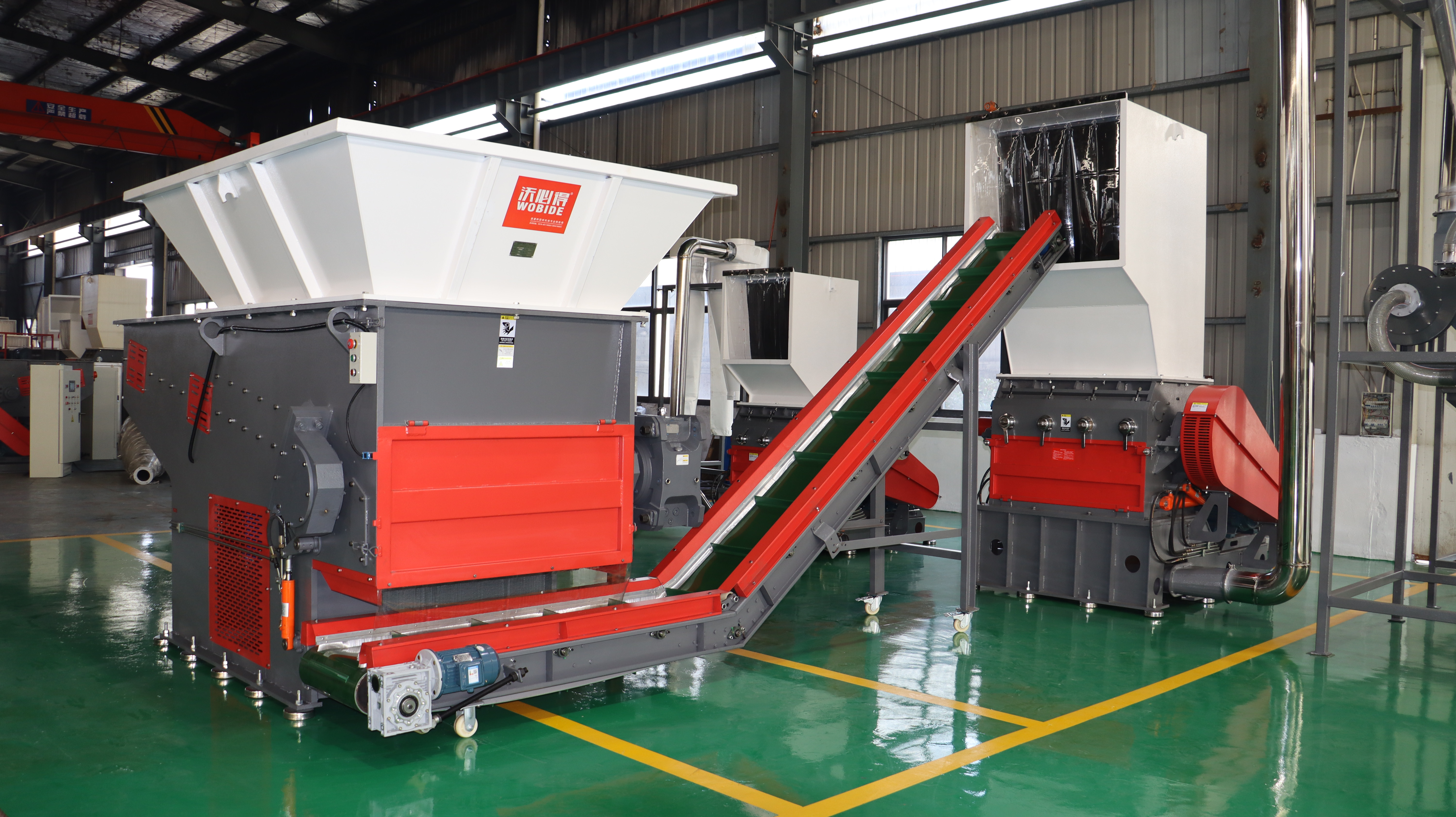

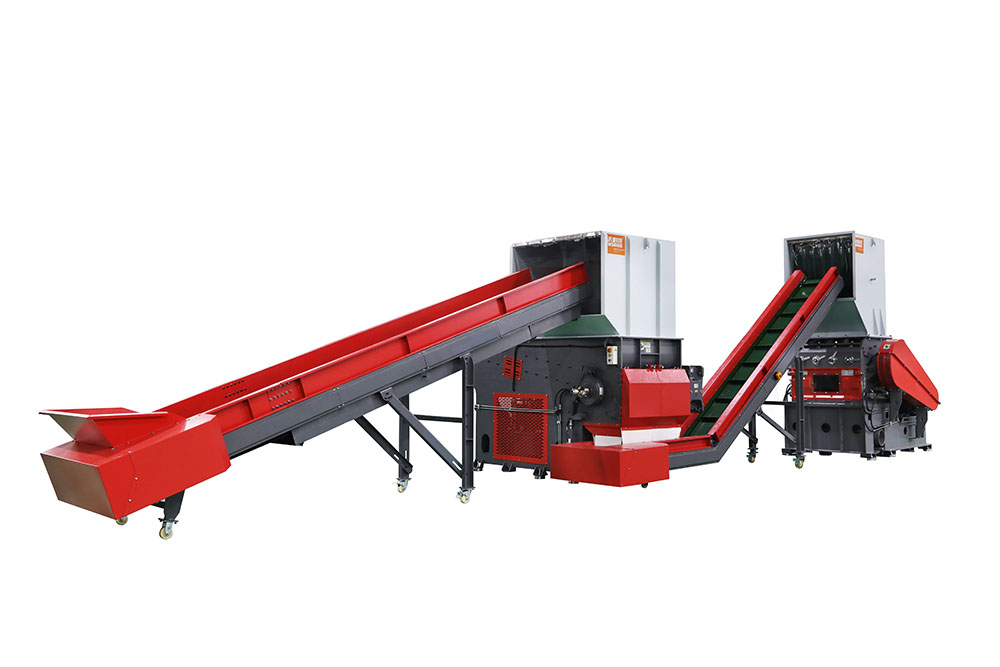

Shredder Crusher Production Recycle Line ZHSC001

Shredder Crusher Production Recycle Line ZHSC001

QUOTE NOW
  • Shredder Crusher Production Recycle Line ZHSC001 details
  • Shredder Crusher Production Recycle Line ZHSC001 details
  • Shredder Crusher Production Recycle Line ZHSC001 details
  • Shredder Crusher Production Recycle Line ZHSC001 details

PRODUCT DESCRIPTION

Application:

  • Large household appliance shells
  • Automobile bumpers
  • Injection product

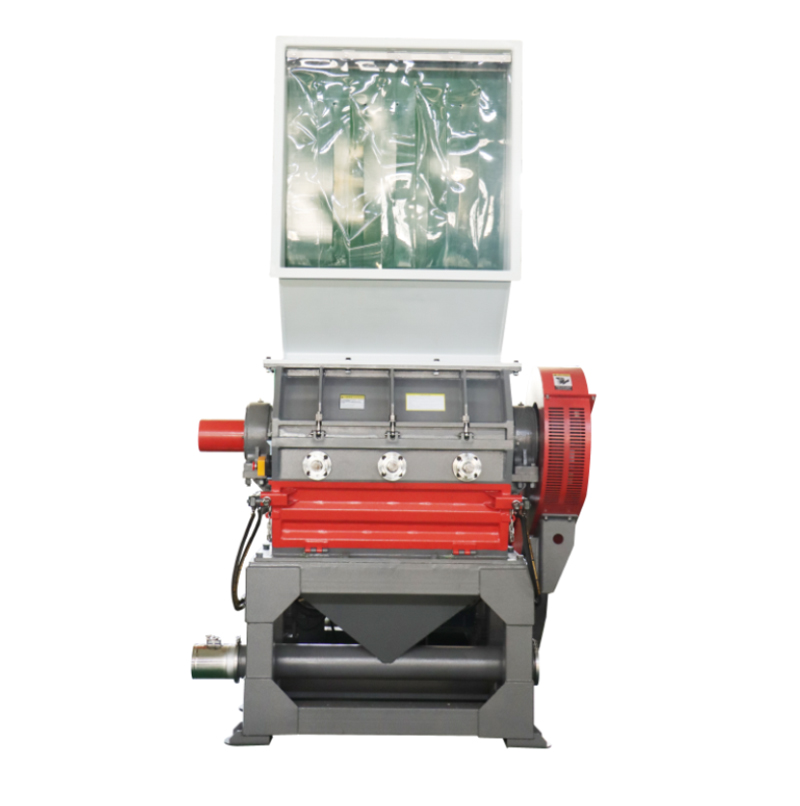

Crusher Feature:

     1. Customized Main Shaft
  • The main shaft adopts high-strength welded steel structure with a unique V-shaped design.
  • All main shafts have passed strict dynamic and static balance tests to ensure the reliability of machine operation.
     2. External bearing seat.
  • Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
     3.Hydraulic opening system.
  • The upper and lower cabinet and the screen bracket are hydraulically controlled, which is convenient for machine maintenance and the replacement of blades and screens.
     4.Protection device while replacing blade.
  • The mainshaft is fixed during the blade replacement process, which makes the blade replacement easier.
  • At the same time, the circuit is disconnected to prevent the misoperation of the machine and protect the safety of operators.



Shredder Features:

     1.Customized Spindle Rotor
  • The W type for soft material and the blade seat type for block material.
     2.Rotor Change Angle
  • Rotor can be reuse by change the angle according to the wearing condition, which can saving cost by a lot.
     3.External bearing seat.
  • Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
     4.Hydraulic Opening System
  • The maintenance time can be saved by adopt of hydraulic system to provide quick screen change.
Crusher Product specifications:
Model/Parameter WHC600/350 WHC600/450 WHC800/450 WHC800/600 WHC1000/600 WHC1200/600 WHC1400/800 WHC1600/800
Main Shaft Length(mm) 600 600 800 800 1000 1200 1400 1600
Main Shaft Tactical Diameter(mm) 350 450 450 600 600 600 800 800
Main Shaft Speed(rpm) 580 580 580 520 520 520 480 480
Rotor Blades(PCS） 2x3 2x3 2x3 2x5/2x7 2x5/2x7 2x5/2x7 2x7 2x7
Fixed Blades(PCS） 2 2 4 4 4 4 4 4
Power(KW） 22 30 37 55 55/75 75/90 132/160 160
Hydraulic Power(KW) 1.1 1.5 1.5 1.5 1.5 3 3
Screen Mesh Diameter(mm） 10-50 10-50 10-50 10-50 10-50 10-50 12-50 12-50
Inlet Size(mm） 450x600 530x600 530x800 705x800 800x1000 850x1200 1400x1400 1600x1600
Dimension(L*W*H）(mm） 1650x1370x1950 2000x1550x2550 2000x1750x3150 2100x1750x3200 2300x1950x3350 2300x2150x3350 3500x2500x5000 3860x2650x5380
Weight(kg） 1800 2600 3100 3500 4500 5500 12000 14000


Shredder Product specifications:

Model
WPS600
WPS800
WPS1000
WPS1200
WPS1600
Main Shaft Length(mm)
600
800
1000
1200
1600
Tactical Diameter(mm)
280
400
450
450
645
Main Shaft Speed(rpm)
78
78
78
78
78
Ram Travel（mm）
600
800
1000
1200
1600
Rotor Blades（pcs）
39
51/57
63/92
81/116
140/156
Fixed Blades（pcs）
2
2
3
4
5
Motor Power(kw)
22
37
55/75
75/90
75*2
Hydraulic Power（kw）
2
3
4
4
5
Screen Mesh Diameter
(mm)
30-80
30-80
30-120
30-120
30-120
Cutting Chamber Dimension
(mm)
600*600
800*800
1000*1000
1200*1250
1600*1400
Overall Dimension
(mm)
1750*1400*1780
2430*1720*2480
2880*2180*2570
3350*2300*2660
3800*3300*3250
Weight(kg)
2800
5000
7000
8000
11500


Please tell us:
Type of raw material
Required output per hour
Your budget
We will ask engineers to make different plans based on your information



Wobide Machinery Co., Ltd is professional Shredder Crusher Production Recycle Line ZHSC001 suppliers and China Shredder Crusher Production Recycle Line ZHSC001 factory, these equipment is being used in many application. View application or details above or inquiry more. We also OEM/ODM Shredder Crusher Production Recycle Line ZHSC001. You can find tech details and ask price at Wobide Machinery Co., Ltd.
