Plastic Tray Crusher WPC1200/600

1.WPC series plastic pallet crusher is specially designed and developed for plastic products with large width and small thickness. Such as pallets, pipes, plastic doors and windows.
2.The unique feeding hopper form is used to facilitate the feeding of pallets and wide materials.
3.The inlet can be customized according to the size of the raw material.

QUOTE NOW

PRODUCT DESCRIPTION

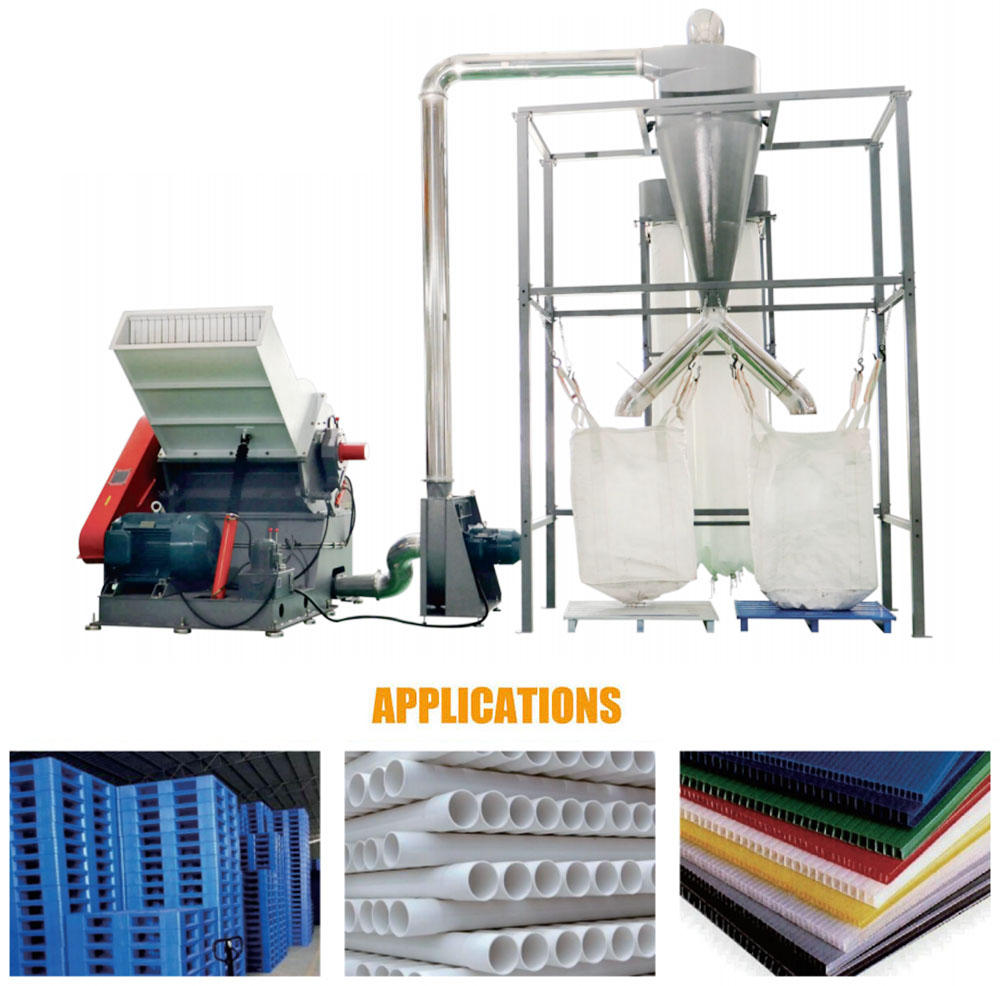

Application:

Pallet
Pipes
Plastic doors and windows
Panel

Feature:

	1. Customized Main Shaft The main shaft adopts high-strength welded steel structure with a unique V-shaped design. All main shafts have passed strict dynamic and static balance tests to ensure the reliability of machine operation.
2. External bearing seat. Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
	3.Hydraulic opening system. The upper and lower cabinet and the screen bracket are hydraulically controlled, which is convenient for machine maintenance and the replacement of blades and screens.
4.Protection device while replacing blade. The mainshaft is fixed during the blade replacement process, which makes the blade replacement easier. At the same time, the circuit is disconnected to prevent the misoperation of the machine and protect the safety of operators.
	5. Special feeding design It is quite suitable for wide material. The lower feed inlet height is easier for feeding.

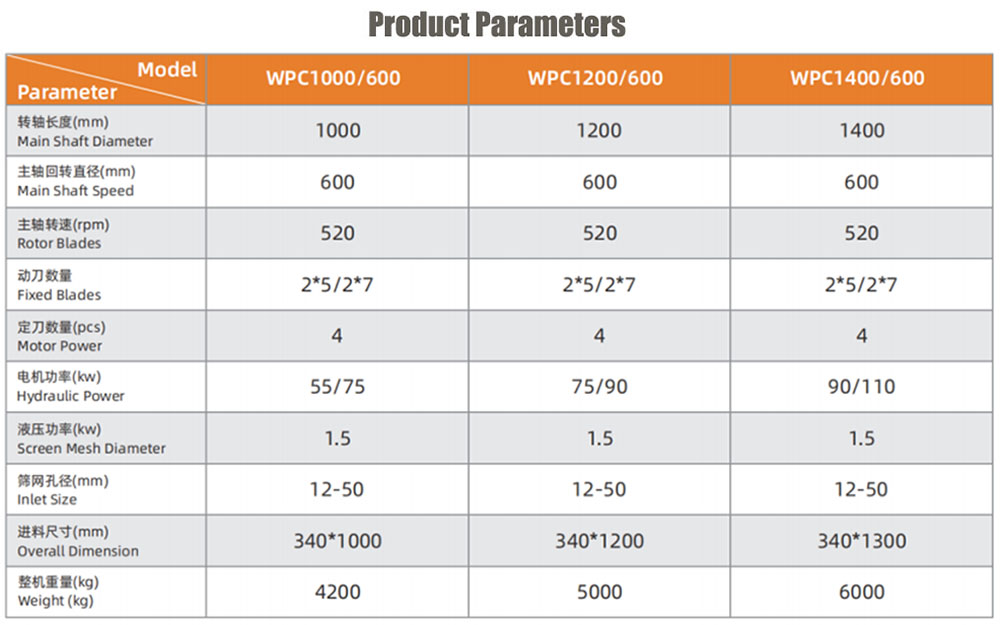

Product parameters:

Model/Parameter	WPC1000/600	WPC1200/600	WPC1400/600
Main Shaft Length(mm)	1000	1200	1400
Main Shaft Tactical Diameter(mm)	600	600	600
Main Shaft Speed(rpm)	520	520	520
Rotor Blades(PCS）	25/27	25/27	25/27
Fixed Blades(PCS）	4	4	4
Power(KW）	45/55	55/75	75/90
Hydraulic Power(KW)	1.5	1.5	1.5
Screen Mesh Diameter(mm）	12-50	12-50	12-50
Inlet Size(mm）	340*1000	340*1200	340*1300
Dimension(LWH）(mm）	230019501780	230021501780	230023001780
Weight(kg）	4200	5000	6000
