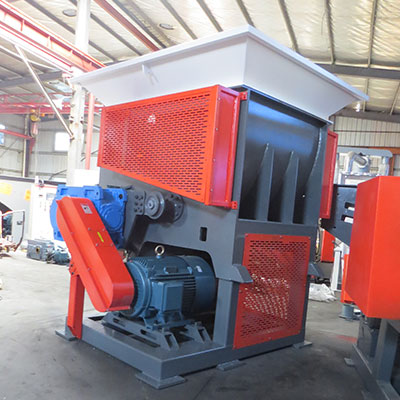

Large Crushing Cavity Single Shaft Shredder WLS1000

1.The WLS series single-shaft shredder was specially developed for large-volume materials,are equipped with a built-in pusher,which makes it a small floor space and a large internal space.
2.WLS whole series shredder use high-quality alloy steel and equipped with D2/DC53 blades,also offer different design solution according to different materials.
3.The series single-shaft shredders were developed with premium quality,wide range of applications, low speed, high torque, and low noise.

QUOTE NOW

PRODUCT DESCRIPTION

Application:

Chemical blue barrel
Plastic pallet
Garbage can
Pieces from injection molding machine
Thick wall plastic sheet
Pipe
Hollow plastic products

Features:

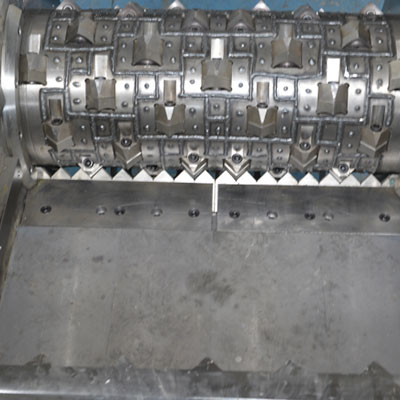

	1.Customized Spindle Rotor The W type for soft material and the blade seat type for block material
2.Rotor Change Angle Rotor can be reuse by change the angle according to the wearing condition, which can saving cost by a lot.
	3.External bearing seat. Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
4.Hydraulic Opening System The maintenance time can be saved by adopt of hydraulic system to provide quick screen change.
	5.Small footprint. The internal arc pushingdevice reduces the size of the machine effectively.
6.Suitable for large-volume material. The special design offered a large crushing chamber for large-volume material, such as chemical blue barrel,plastic pallet and garbage can, etc.

Product specification:

Model/Parameter	WLS1000	WLS1200	WLS1600	WLS2000
Main Shaft Length(mm)	1000	1200	1600	2000
Main Shaft Tactical Diameter(mm)	450	450	450	450
Main Shaft Speed(rpm)	78	78	78	78
Rotor Blades(pcs)	63	81	105	132
Fixed Blades(pcs)	3	4	4	5
Motor Power(kw)	55/75	75/90	75*2	90*2
Hydraulic Power(kw)	5.5	5.5	7.5	7.5
Screen Mesh Diameter(mm)	30-100	30-100	30-100	30-100
Cutting Chamber Dimension(mm)	1840*1030	1840*1260	1840*1540	1840*1840
Overall Dimension(LWH)(mm)	260024502160	260024502160	260027502160	260032502160
Weight(kg)	6000	7200	8500	9500
