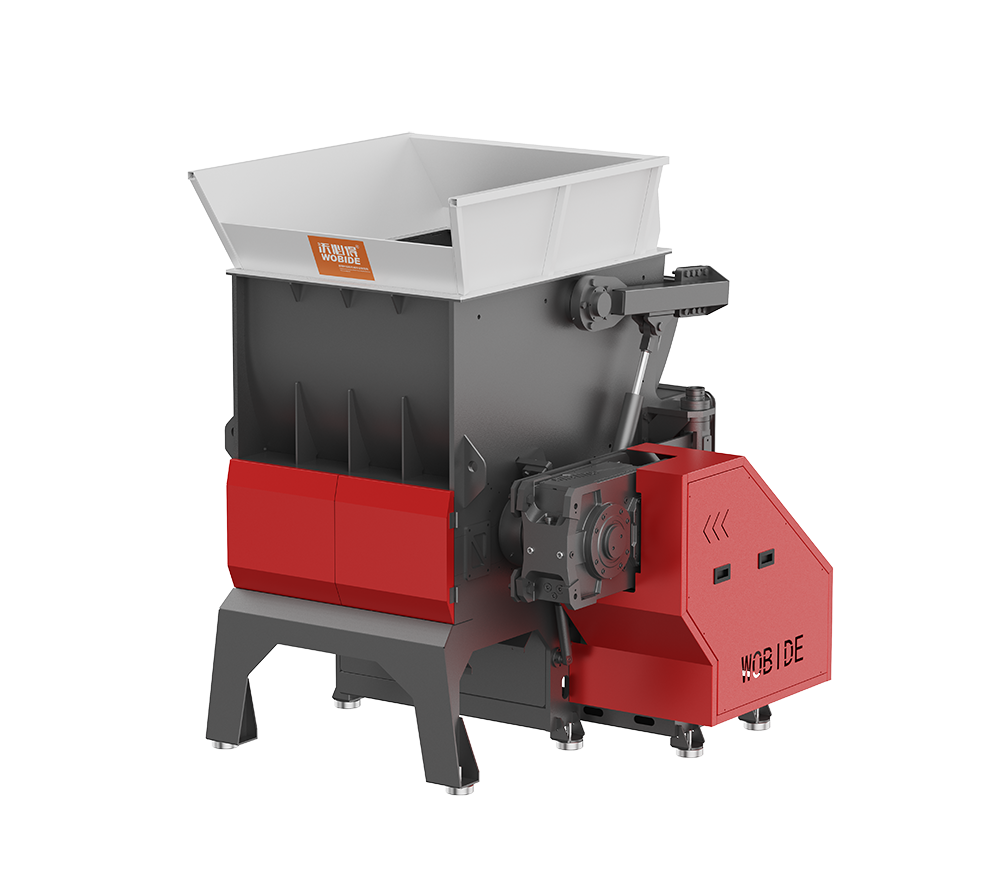

Waste Recycling Plastic Shredder WLS 1200

1.The WLS series single-shaft shredder was specially developed for large-volume materials,are equipped with a built-in pusher,which makes it a small floor space and a large internal space.
2.WLS whole series shredder use high-quality alloy steel and equipped with D2/DC53 blades,also offer different design solution according to different materials.
3.The series single-shaft shredders were developed with premium quality,wide range of applications, low speed, high torque, and low noise.

QUOTE NOW

PRODUCT DESCRIPTION

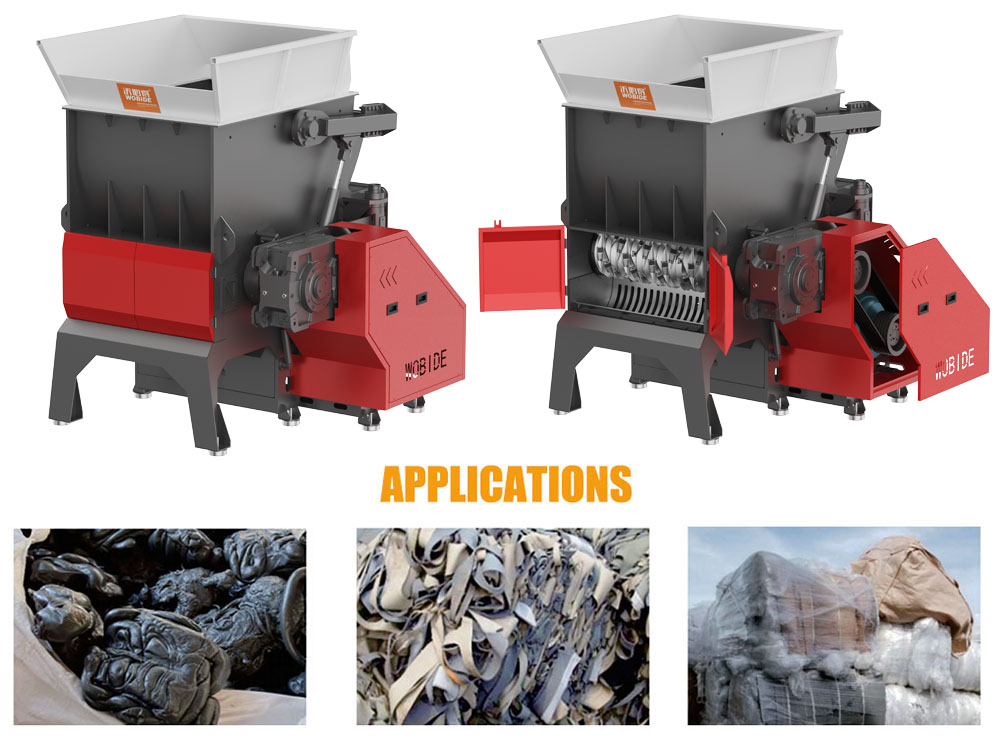

Application:

Chemical blue barrel
Plastic pallet
Garbage can
Pieces from injection molding machine
Thick wall plastic sheet
Pipe
Hollow plastic products

Features:

	1.Customized Spindle Rotor The W type for soft material and the blade seat type for block material
2.Rotor Change Angle Rotor can be reuse by change the angle according to the wearing condition, which can saving cost by a lot.
	3.External bearing seat. Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.

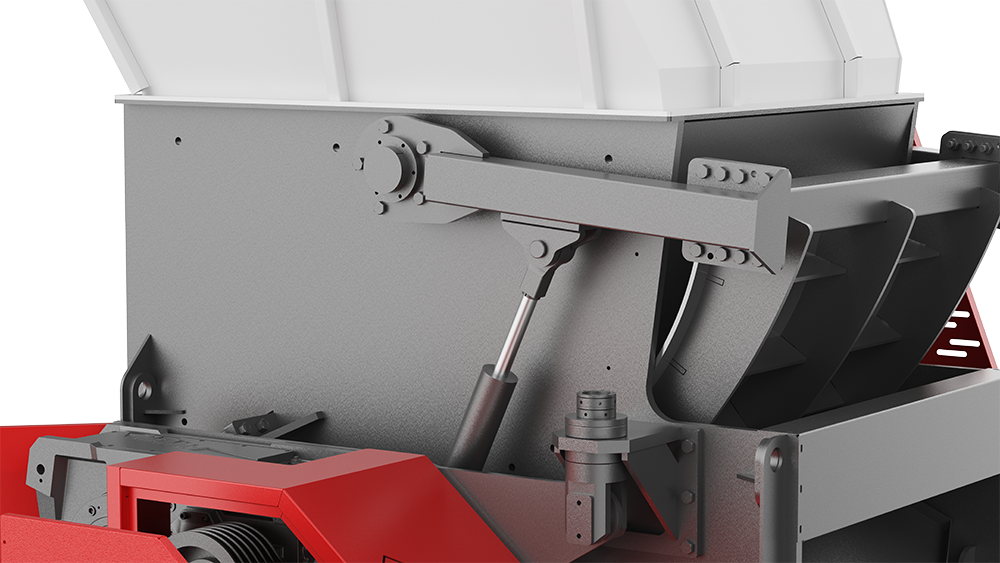

4.Hydraulic Opening System The maintenance time can be saved by adopt of hydraulic system to provide quick screen change.
	5.Small footprint. The internal arc pushingdevice reduces the size of the machine effectively.
6.Suitable for large-volume material. The special design offered a large crushing chamber for large-volume material, such as chemical blue barrel,plastic pallet and garbage can, etc.

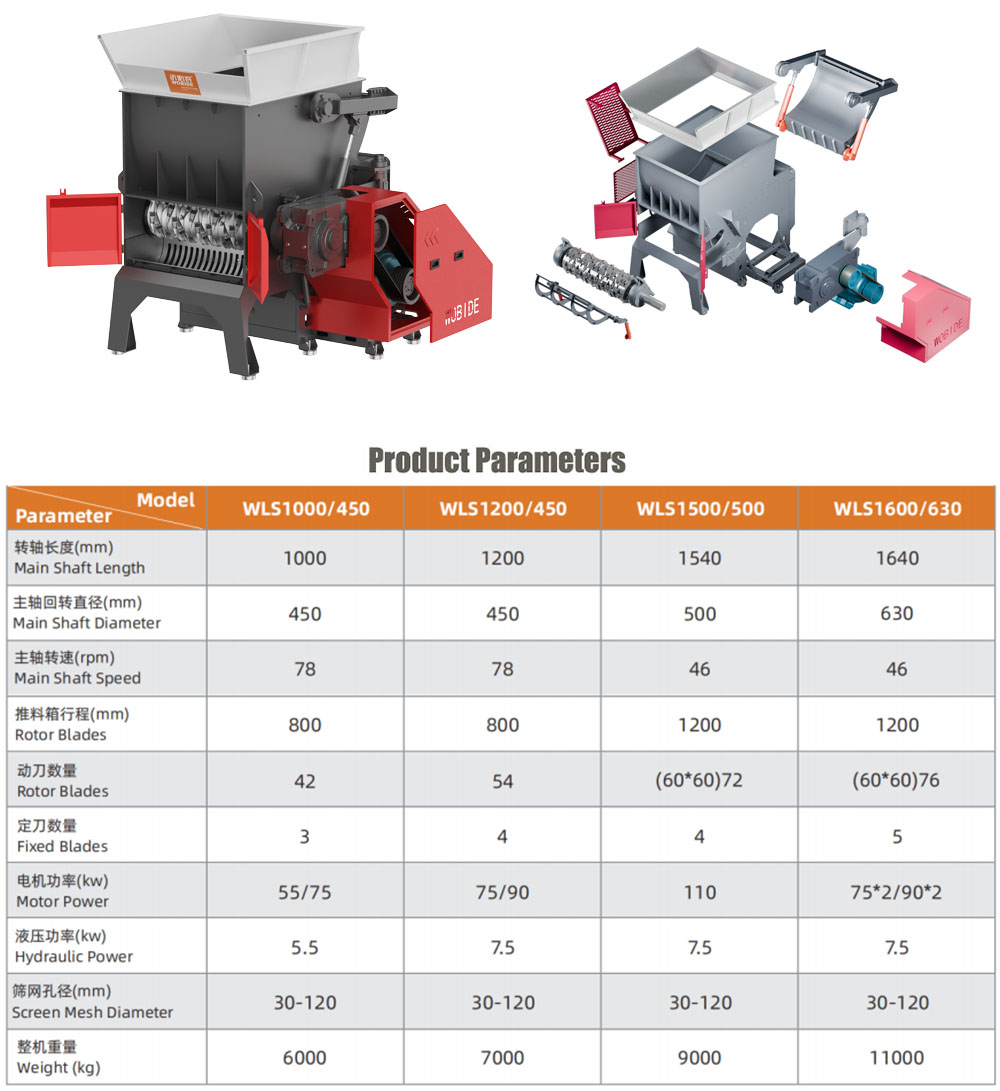

Product specification:

Model/Parameter	WLS1000	WLS1200	WLS1500	WLS1600
Main Shaft Length(mm)	1000	1200	1540	1640
Main Shaft Tactical Diameter(mm)	450	450	500	630
Main Shaft Speed(rpm)	78	78	46	46
Ram Travel(mm)	800	800	1200	1200
Rotor Blades	63	81	(60*60) 72	(60*60) 76
Fixed Blades(pcs)	3	4	4	5
Motor Power(kw)	55/75	75/90	110	752/902
Hydraulic Power(kw)	5.5	7.5	7.5	7.5
Screen Mesh Diameter(mm)	30-120	30-120	30-120	30-120
Overall Dimension(LWH)(mm)	288021802570	335023002660	365030003320	375035603420
Weight(kg)	6000	7000	9000	11000
