Product Description
Industrial Shredder-Crusher Integrated Machine The Shredder-Crusher Integrated Machine combines shredding and granulating into one compact and highly efficient recycling system. The upper section features a heavy-duty single shaft shredder equipped with a high-torque rotor, wear-resistant blades and a hydraulic swing ram feeding system for powerful primary shredding. The lower section is a high-speed granulator that further reduces shredded materials into uniform flakes. The finished material is automatically conveyed through a cyclone collection system for dust-controlled bagging, providing a complete recycling solution with minimal floor space. Designed for continuous industrial operation, this integrated system significantly reduces processing time, labor costs and energy consumption while delivering consistent particle size. |  | |
Product Advantages
✔ Shredding and granulating in one machine ✔ Reduced floor space requirements ✔ Lower operating and installation costs
✔ Continuous automated recycling process ✔ Uniform output particle size ✔ High-torque shredding performance

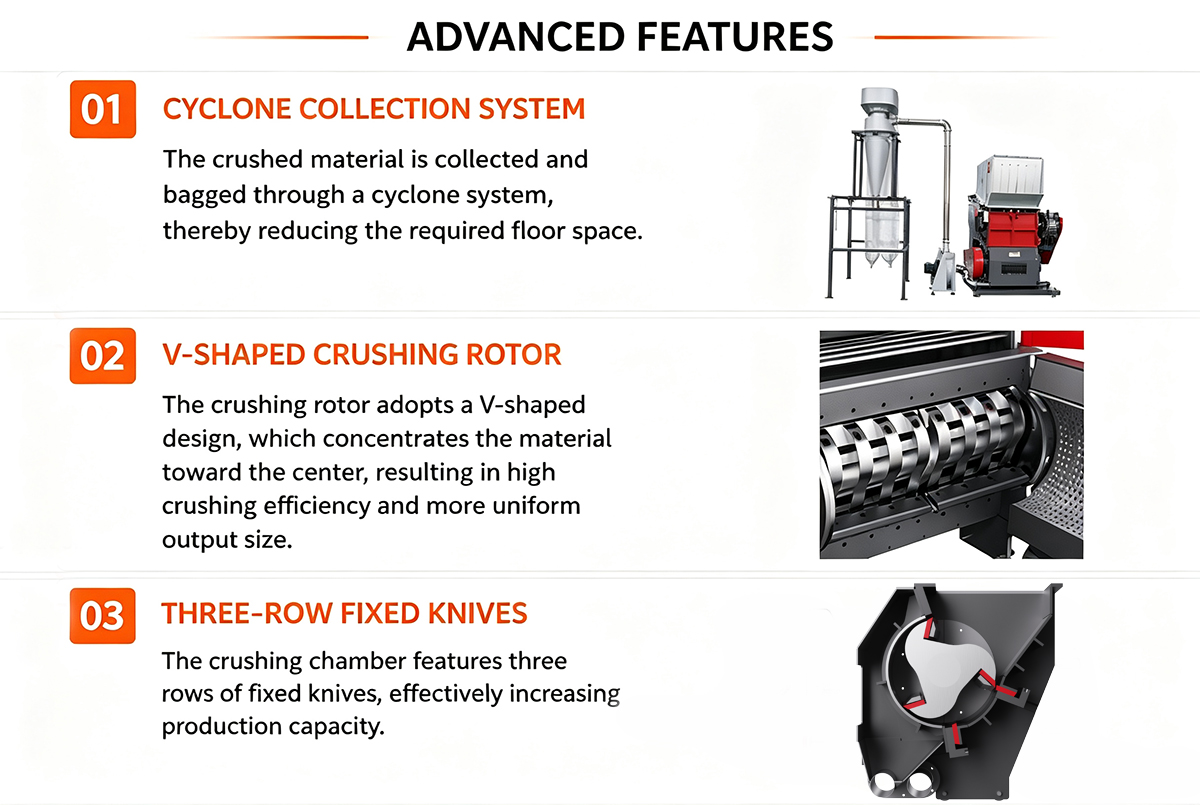

✔ Efficient cyclone collection and bagging ✔ Easy maintenance and blade replacement
✔ Stable operation with low energy consumption ✔ Suitable for a wide range of plastic materials
✔ Heavy-duty industrial construction ✔ Customized configurations available
Technical Specifications
Parameter\Model | WSS600 | WSS800 | WSS1000 | WSS1200 |
Shredding Shaft Length (mm) | 600 | 800 | 1000 | 1200 |
Shredding Rotation Diameter (mm) | 280 | 400 | 450 | 450 |
Shredding Rotation Speed (rpm) | 78 | 78 | 78 | 78 |
Ram Travel (mm) | 600 | 800 | 1000 | 1200 |
Shredding Rotor Blades (pcs) | 30 | 38 | 42 | 54 |
Shredding Fixed Blades (pcs) | 2 | 2 | 3 | 4 |
Shredding Motor Power (kw) | 22 | 37 | 55 | 75 |
Hydraulic Power (kw) | 2.2 | 3 | 4 | 4 |
Shredding Screen Diameter (mm) | 60 | 60 | 60 | 60 |
Crushing Chamber Diameter (mm) | 300 | 350 | 500 | 500 |
Crushing Rotor Blades (pcs) | 6 | 6 | 6 | 6 |
Crushing Fixed Blades (pcs) | 6 | 6 | 6 | 6 |
Crushing Screen Diameter (mm) | 8-20 | 8-20 | 8-20 | 8-20 |
Crushing Motor Power (kw) | 15 | 22 | 45 | 55 |
Total Power (kw) | 39.2 | 62 | 104 | 134 |
Weight (kg) | 3200 | 5500 | 7000 | 10000 |

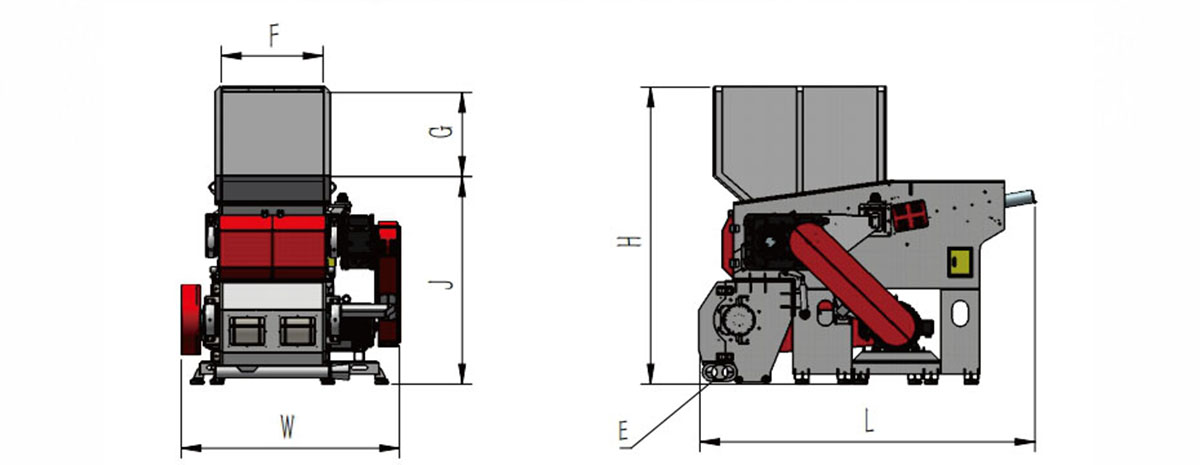

A/B | WSS600-280 | WSS800-400 | WSS1000-450 | WSS1200-450 |
L | 2070 | 2720 | 3410 | 3890 |
W | 1500 | 1830 | 2220 | 2530 |
H | 2100 | 2290 | 3020 | 3130 |
J | 1460 | 1640 | 2100 | 2100 |
E | Φ114 | Φ114 | Φ160 | Φ160 |
F | 650 | 840 | 1030 | 1260 |
G | 640 | 630 | 850 | 1020 |

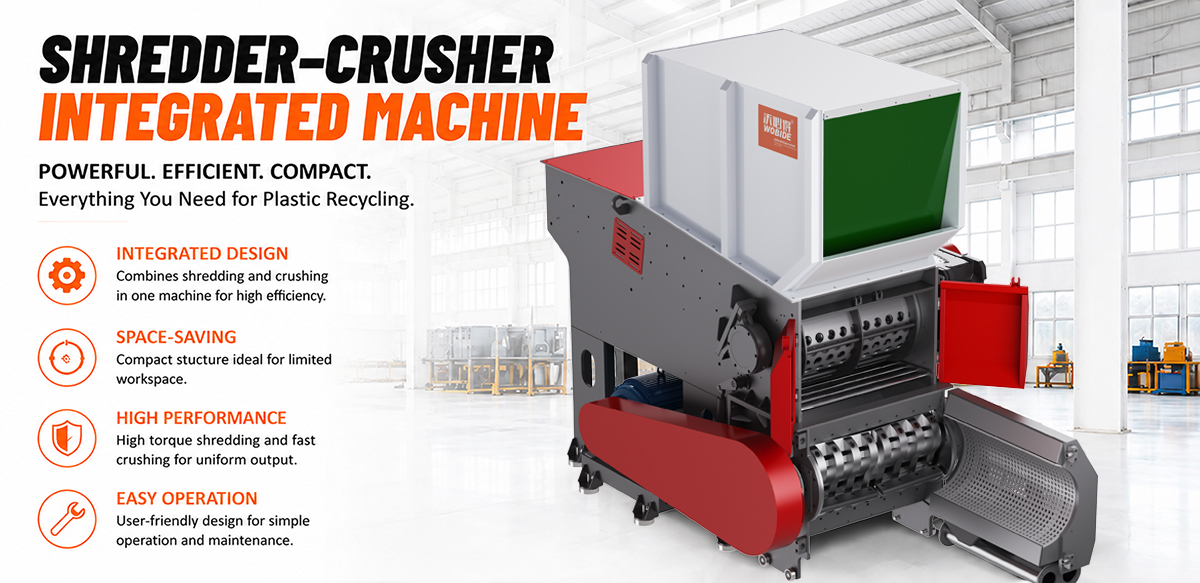

 INTEGRATED DESIGN Combines shredding and crushing in one machine for high efficiency. |  SPACE-SAVING Compact structure ideal for Limited workspace. |  HIGH PERFORMANCE High torque shredding and fast crushing for uniform output. |  EASY OPERATION User-friendly design for simple operation and maintenance. |
