Product Advantages Description

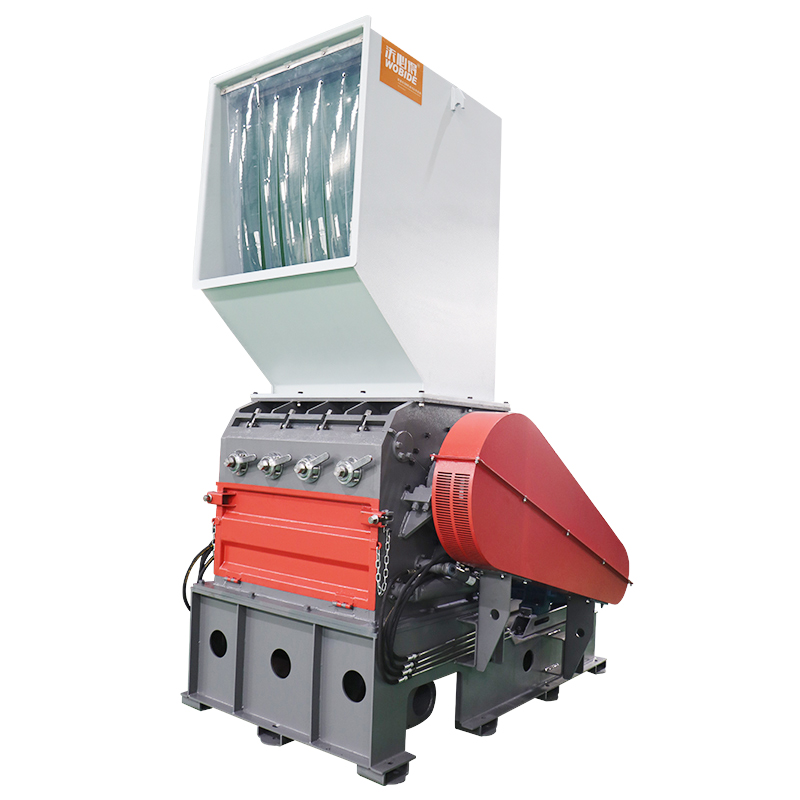

Designed for demanding plastic recycling applications, our Heavy Duty Crusher delivers exceptional crushing efficiency, stable performance, and long service life. The reinforced machine frame, wear-resistant cutting system, and user-friendly maintenance design make it an ideal solution for continuous industrial production.Whether processing PET bottles, plastic films, injection molded parts, pipes, or engineering plastics, this crusher ensures consistent particle size and reliable operation. | | |
Advantage
✔ High Crushing Efficiency ✔ Uniform Particle Size ✔ Low Noise Operation
✔ Stable Continuous Production ✔ Long Blade Service Life ✔ Low Maintenance Cost
Product Details
Technical Parameters
Parameter Model | WHC600/350 | WHC600/450 | WHC800/450 | WHC800/600 | WHC1000/600 | WHC1200/600 | WHC1200/800 |
Rotor Length (mm) | 600 | 600 | 800 | 800 | 1000 | 1200 | 1200 |
Rotor Diameter(mm) | 350 | 450 | 450 | 600 | 600 | 600 | 800 |
Rotation Speed (rpm) | 520 | 520 | 520 | 500 | 500 | 500 | 480 |
Hopper Opening (mm) | 605*600 | 605*750 | 810*850 | 810*1050 | 1020*1050 | 1220*1050 | 1250*1240 |
Screen Mesh Diameter (mm) | 10–50 | 10–50 | 10–50 | 10–50 | 10–50 | 10–50 | 10–50 |
Fixed Blades (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Rotor Blades (pcs) | 2*3 | 2*3 | 2*3 | 2*5 | 2*5 | 2*5 | 2*5/2*7 |
Hydraulic Power (kw) | / | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 3 |
Motor Power (kw) | 22 | 30 | 37 | 55 | 75 | 90 | 132/160 |
Weight (kg) | 1500 | 2600 | 2700 | 4350 | 4500 | 5500 | 11000 |

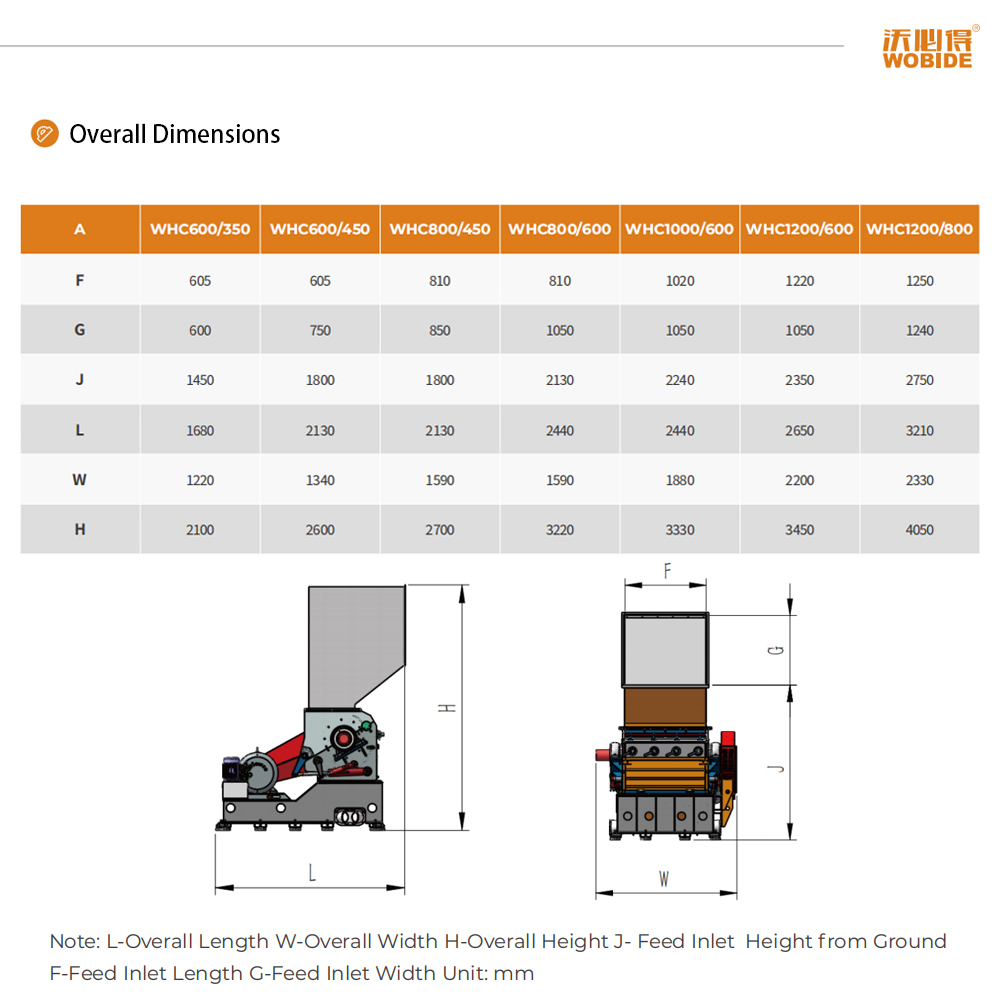

A | WHC600/350 | WHC600/450 | WHC800/450 | WHC800/600 | WHC1000/600 | WHC1200/600 | WHC1200/800 |
F | 605 | 605 | 810 | 810 | 1020 | 1220 | 1250 |
G | 600 | 750 | 850 | 1050 | 1050 | 1050 | 1240 |
J | 1450 | 1800 | 1800 | 2130 | 2240 | 2350 | 2750 |
L | 1680 | 2130 | 2130 | 2440 | 2440 | 2650 | 3210 |
W | 1220 | 1340 | 1590 | 1590 | 1880 | 2200 | 2330 |
H | 2100 | 2600 | 2700 | 3220 | 3330 | 3450 | 4050 |
