Product Description

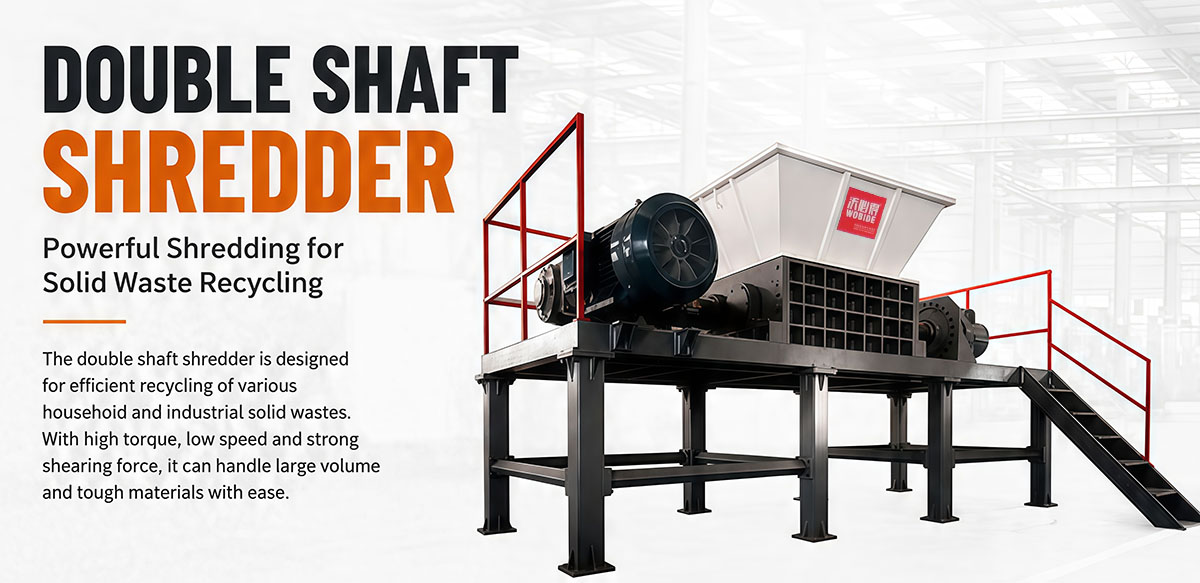

The Heavy Duty Double Shaft Shredder is designed for efficient size reduction of a wide range of household, commercial and industrial solid waste. Utilizing a low-speed, high-torque dual-shaft shearing system, the machine effectively cuts, tears and compresses bulky materials into manageable sizes for downstream recycling. Its robust construction, high-strength alloy blades and modular design ensure reliable performance under continuous heavy-duty operation. The machine can also be customized according to material characteristics, capacity requirements and specific recycling applications. Whether processing plastic pallets, waste appliances or tires, the Double Shaft Shredder delivers outstanding productivity, reduced operating costs and consistent shredding performance. |
|
|

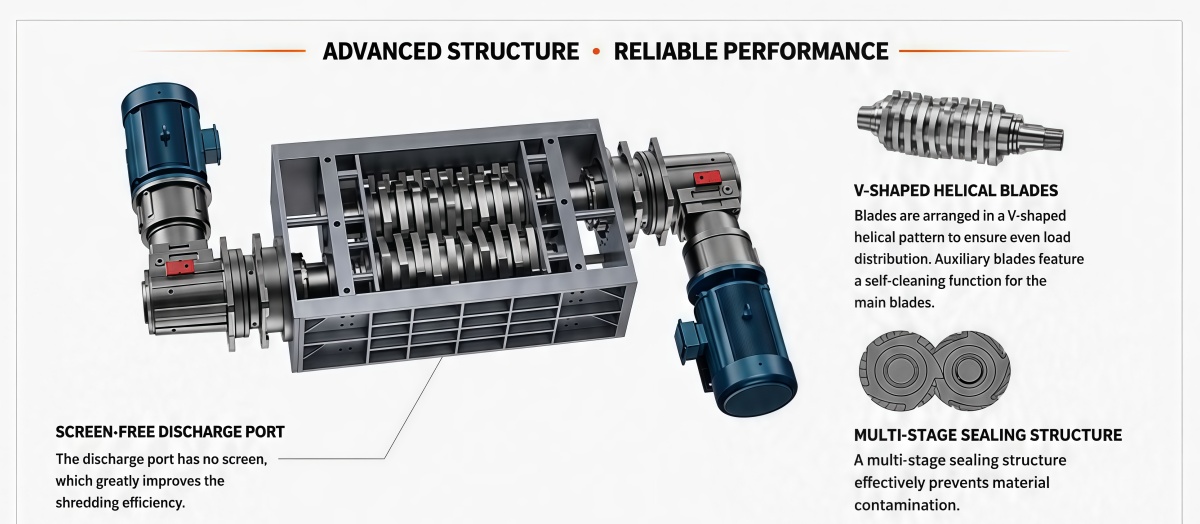

Advanced Structure.Reliable Performance
Technical Specifications
Parameter \ Model |
WT600 |
WT800 |
WT1000 |
WT1200 |
WT1400 |
Main Shaft Length (mm) |
600 |
800 |
1000 |
1200 |
1400 |
Shaft Rotation Speed (rpm) |
10-15 |
10-15 |
10-15 |
7-15 |
7-15 |
Number of Blades (pcs) |
20 |
20 |
24 |
24 |
24 |
Blade Diameter (mm) |
300 |
430 |
450 |
450 |
520 |
Blade Thickness (mm) |
30 |
40 |
40 |
50 |
55 |
Motor Power (kw) |
2*15 |
2*22 |
2*30 |
2*37 |
2*55 |
Cutting Chamber Dimension (mm) |
480*600 |
820*800 |
1020*800 |
1220*800 |
1420*950 |
Weight (kg) |
1700 |
5000 |
6200 |
7500 |
9000 |
HIGH TORQUE DESIGN High torque and low speed for strong shredding capability. |
WIDE APPLICATION Suitable for a wide range of materials and industries. |
STRONG & DURABLE Heavy-duty structure ensures stable operation and long service life |
CUSTOMIZED SOLUTIONS Can be customized according to material properties and user requirements. |
Product Advantages
✔ Powerful dual-shaft shearing technology ✔ Low-speed, high-torque operation ✔ Heavy-duty welded frame
✔ V-shaped helical blades for balanced cutting ✔ Self-cleaning blade structure ✔ Easy maintenance
✔ Handles oversized and bulky materials ✔ Low noise and low vibration ✔ Long blade service life
✔ Screen-free discharge for higher throughput ✔ Stable continuous operation ✔ Fully customizable for different materials
Wide Range Of Applications
WASTE HOUSEHOLD APPIIANCE |
TIRES |
INDUSTRIAL PLASTIC CONTAINERS |
E-WASTE |
PLASTIC PALLET |
CAR SHELLS |
Why Choose Us
HIGH EFFICIENCY Powerful shredding performance with high throughput. |
ENERGY SAVING Optimized design reduces energy consumption. |
LOW NOISE Low speed operation ensures lower noise and vibration. |
EASY MAINTENANCE Modular design for convenient inspection and maintenance. |
RELIABLE QUALITY Core components from top brands ensure reliability. |
