Metal Shredder WT1200

1.WT series double shaft shredder can meet the waste recycling requirements of various industries, including automobile tires, wood, wire, plastic, metal etc.

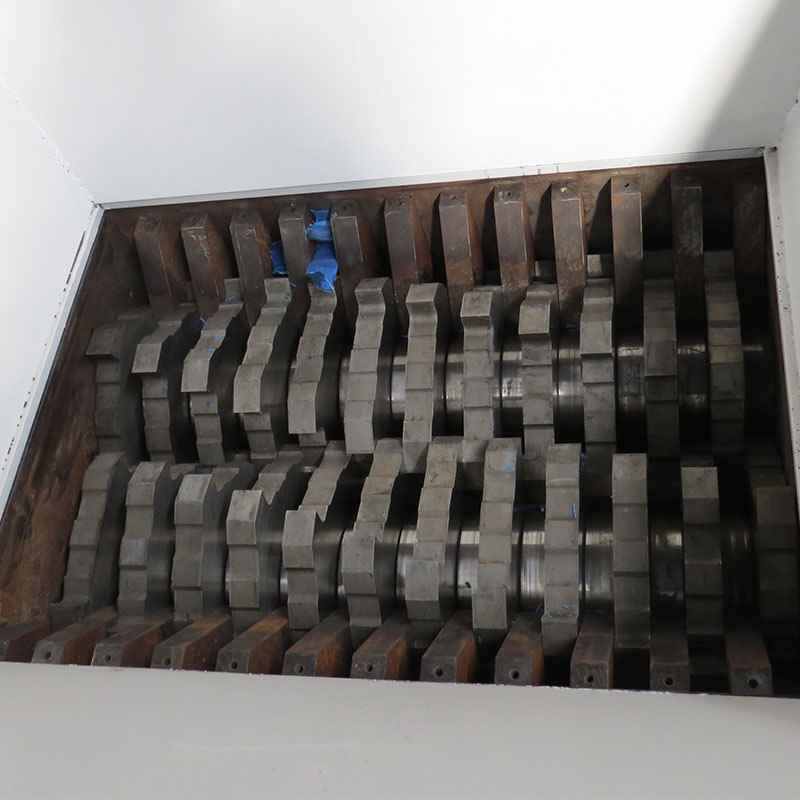

2.It adopts the principle of two shaft shearing, and realizes the fine decomposition of materials through the shearing, tearing and squeezing actions of the blades.
3.The unique working principle and no screen design brings a higher efficiency with low noise and low maintenance compared with traditional shredders.

QUOTE NOW

PRODUCT DESCRIPTION

Application:

Waste household appliance
Tires
Large tubular product
Pallet
Barrel
E-waste
Vehicle cabinet
Metal wastes

Features:

1.The discharge port is designed without screen, which greatly improves the shredding efficiency.
2.The hydraulic feeding device can be customized as per requirement.

Product specification:

Model/Parameter	WT600	WT800	WT1000	WT1200	WT1400	WT1600	WT2000
Main Shaft Length(mm)	600	800	1000	1200	1400	1600	2000
Main Shaft Speed(rpm)	16-25	10-15	10-15	10-15	10-15	10-15	10-15
Blades(pcs)	30	20	24	24	28	32	40
Diameter of Blades(mm)	245	420	440	440	520	520	650
Thickness of Blades(mm)	18.5	40	40	50	50	50	98
Motor Power(kw)	2*7.5	2*22	2*30	2*30	2*37	2*45	2*75
Cutting Chamber Dimension(mm)	480*600	820*800	1020*800	1220*800	1420*950	1620*950	2020*1300
Overall Dimension(LWH)(mm)	200011001700	300012502150	420016002150	480020002150	520022002300	600024002650	800032003500
Weight(kg)	1700	5000	6200	7500	9000	11000	15000

Wobide Machinery Co., Ltd is professional Metal Shredder WT1200 suppliers and China Metal Shredder WT1200 factory, these equipment is being used in many application. View application or details above or inquiry more. We also OEM/ODM Metal Shredder WT1200 . You can find tech details and ask price at Wobide Machinery Co., Ltd.
