A pile of plastic waste can look deceptively simple. Put it into a machine, cut it into smaller pieces, and send it for recycling. In practice, things are rarely that straightforward.
A thick plastic purging may be too large for a conventional crusher. A bundle of woven bags can feed unevenly. Long plastic profiles need a suitable feeding arrangement, while bottles and injection molding scrap may be processed without a separate shredding stage.
This is why buyers often compare a plastic shredder vs plastic crusher before investing in recycling equipment. Both machines reduce plastic waste, but they are built for different working conditions.
A shredder is commonly used to break down bulky or difficult-to-feed material. A crusher is generally used when smaller flakes are needed for storage, washing, or further processing. In some plants, one machine is enough. In others, using both makes the whole process easier to manage.
Let's look at how these machines differ and what to consider before choosing one for your operation.
The easiest way to understand the difference is to look at the material going into the machine.
A plastic shredder is often the first choice for large lumps, thick-walled scrap, bulky containers, and other materials that are difficult to feed directly into a crusher. A plastic crusher is more commonly used for manageable plastic parts or pre-shredded material that needs to be cut into smaller flakes.
Feature | Plastic Shredder | Plastic Crusher |
|---|---|---|
Main role | Breaking down bulky waste | Producing smaller plastic flakes |
Cutting action | Primarily shearing and tearing | Repeated cutting between moving and fixed knives |
Typical operation | Relatively low speed with high torque in many designs | Generally higher-speed rotor cutting |
Feed material | Large, irregular, thick, or difficult-to-feed pieces | Bottles, production scrap, profiles, and suitable pre-shredded material |
Output | Often coarse and irregular | Usually smaller, with sizing controlled by the machine configuration |
Common use | Primary size reduction | Secondary size reduction or direct processing of suitable feed |
These are general distinctions, not rigid rules. Some shredders are fitted with screens, and some crushers can handle substantial pieces of plastic. The actual capabilities depend on the model, cutting chamber, feed opening, blade arrangement, and material being processed.
A plastic shredder uses one or more rotating shafts fitted with cutters to pull material into the cutting chamber and break it apart. Many industrial models operate at relatively low speeds, with high torque helping them deal with large or resistant pieces.
Take plastic purgings from an injection molding operation. Some pieces can be thick, solid, and irregular in shape. Trying to feed them directly into a small crusher may cause feeding difficulties or place unnecessary demands on the cutting system.
A suitable single-shaft shredder can reduce these pieces to a more manageable size before they move to the next stage.
Hydraulic feeding is another important feature in many single-shaft designs. Instead of relying entirely on gravity, a pusher moves material toward the rotor. This helps maintain contact between the material and the cutting elements.

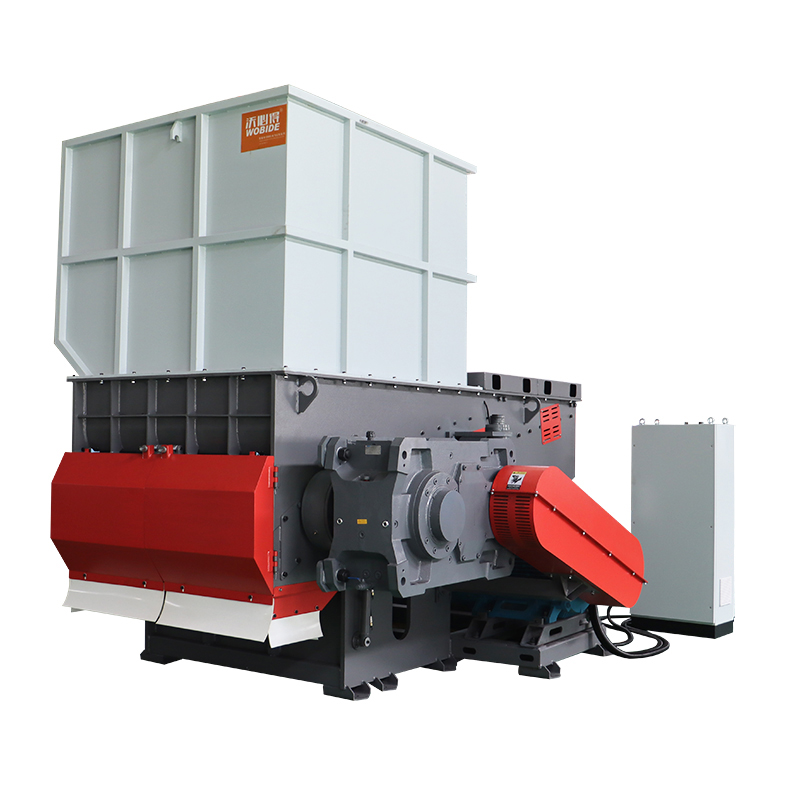

Wobide's single-shaft shredder is designed for applications including plastic lumps, purgings, woven bags, and films. The appropriate configuration depends on the feed material and the required processing capacity.
A plastic crusher usually works with a rotating knife assembly and fixed knives. As material enters the cutting chamber, the knives cut it into progressively smaller pieces.
Many plastic crushers use a screen beneath the rotor. Pieces that are still too large remain in the cutting chamber until they can pass through the screen openings.
This makes a crusher useful when the recycling process needs a more controlled flake size. For example, a plant recovering clean production scrap may use a crusher to prepare material for storage, conveying, or a washing line.
However, the feed still matters. A crusher with a limited hopper opening may not accept long profiles or large solid blocks easily, even if its motor power appears sufficient on paper.

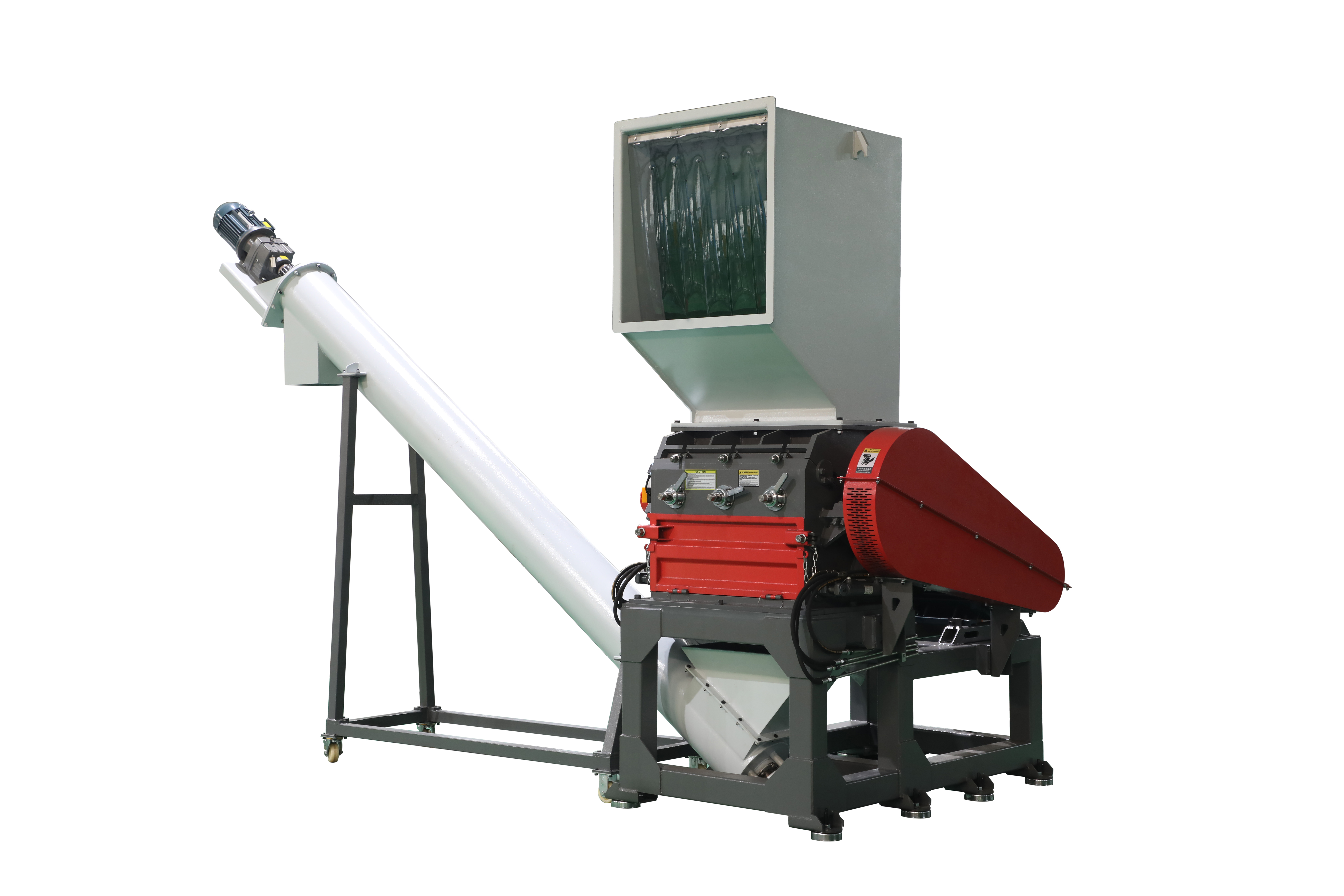

For suitable applications, Wobide's heavy-duty plastic crusher provides an option for processing plastic scrap. Buyers should check the hopper dimensions, rotor design, screen options, and material limits before choosing a model.
Two machines described as plastic shredders or plastic crushers can perform quite differently. Looking at a few technical details will give you a better idea of what each machine can actually do.
Shredders are often designed to deliver strong cutting torque at relatively low speeds. This helps the cutters engage with bulky material without relying on rapid, repeated cutting alone.
Crushers typically use faster rotor speeds to make repeated cuts and produce smaller pieces. But higher speed does not automatically mean higher output. Material thickness, knife condition, rotor dimensions, feeding consistency, and the size of the discharge openings all affect production.
When comparing quotations, look beyond the motor rating and rotational speed. Ask the supplier about expected throughput for your actual material and the conditions under which that figure was measured.
Blades are working parts, not simply components to compare by appearance.
On a shredder, cutter geometry and arrangement affect how the machine grips and tears the material. On a crusher, the relationship between the moving and fixed knives influences cutting quality, power demand, and wear.
Knife clearance also deserves attention. Incorrect clearance or worn cutting edges can affect performance and increase the amount of material that needs to be processed again.
Before buying, ask how the blades are replaced or sharpened, how easily the cutting chamber can be accessed, and whether replacement parts are readily available. These details can have a noticeable effect on maintenance time over the life of the machine.
The screen is one of the main factors affecting output size in a screen-equipped plastic crusher.
A smaller screen opening generally means material must be reduced further before it can leave the chamber. This can be useful when the next process requires smaller flakes, but it may also restrict discharge and reduce throughput. A larger opening may improve material flow while allowing larger pieces to pass through.
There is no single screen size that suits every application. The right choice depends on the plastic, the required particle size, and the capacity of the downstream equipment.
Some shredders operate without a discharge screen, while other designs use screens to control the output. If particle size is important to your process, confirm the configuration rather than assuming all machines in the same category produce similar results.
The type of plastic is only part of the decision. Its shape, thickness, dimensions, and condition can be just as important.
Thick injection molding purgings and solid lumps are common examples of material that may need primary shredding. Their size and irregular shape can make direct feeding into a conventional crusher difficult.
A single-shaft shredder may be a practical starting point. If the next stage requires smaller flakes, a crusher can be added downstream.
For smaller pieces that already fit the crusher's feed opening, a separate shredder may not be necessary.
Plastic bottles, containers, runners, and sprues can often be processed directly by a suitable crusher. The key is to check the dimensions of the actual feed, not just its general category.
Mixed containers may present additional challenges. Handles, thick sections, labels, closures, and contamination can affect feeding and the quality requirements of the following washing process.
If the material is going to be washed, it is worth deciding on the crushing stage together with the washing line. The aim is not simply to produce smaller pieces, but to prepare material that works well throughout the process.
Long pipes and profiles require a different approach from small injection molding parts. The hopper must accommodate the material, and the machine must be designed to feed it safely and consistently.
A dedicated pipe and profile crusher may be suitable for certain production offcuts. Wobide's crushing equipment range includes different crusher types for different material requirements.
For oversized or thick sections, pre-shredding may be worth considering. The best arrangement depends on the feed length, wall thickness, rigidity, and target output size.
Flexible materials can be surprisingly difficult to process. Film may fold or bridge in the hopper, and woven bags can feed unevenly if the machine is not suited to the material.
The right setup depends on whether the feed is loose, baled, contaminated, or mixed with rigid plastics. A shredder, crusher, or combination system may be suitable under different conditions.
For film recycling, size reduction is only one part of the job. Sorting, washing, separation, and drying also influence the quality of the recovered material.
Some recycling plants need both machines, but not every plant does.
A common arrangement for bulky plastic waste is to use a shredder first and a crusher afterward. The shredder reduces the incoming material to a manageable size; the crusher then produces smaller flakes for the next process.
A typical line might follow this route:
Plastic waste → Shredding → Crushing → Washing and separation → Dewatering and drying → Further processing
The actual sequence varies with the feedstock. Clean production scrap may go straight to a crusher, while mixed rigid plastics may need sorting and several washing stages. Some materials also require additional treatment before pelletizing.
Imagine a plant receiving large, irregular plastic purgings from several production machines. The pieces vary in size, and some are too bulky to feed comfortably into the available crusher.
The first step would be to assess the maximum piece dimensions, material thickness, and expected throughput. If the material is unsuitable for direct crushing, a shredder could reduce its size before it enters the crusher.
Now consider a different plant processing relatively small injection molding runners. If the scrap fits the crusher and the machine can meet the required output, adding a shredder may offer little benefit.
These are illustrative scenarios rather than reports of specific customer installations. They show why the right equipment should be selected around the actual material instead of choosing the largest or most powerful machine available.
An integrated system may also be worth considering where space, material transfer, or process layout is a concern. You can review Wobide's shredder-crusher integrated machine as one possible configuration.
A useful quotation starts with a clear description of the job. The more accurately you describe your material, the easier it is for a supplier to recommend suitable equipment.
Before contacting a manufacturer, prepare the following details:
Plastic type: PE, PP, ABS, PVC, or a mixed plastic stream, if known.
Feed dimensions: Maximum length, width, and thickness of the pieces.
Material condition: Loose, baled, bulky, wet, contaminated, or mixed with other materials.
Required capacity: Target output in kilograms per hour or tonnes per hour.
Final particle size: The size needed for washing, conveying, storage, or further processing.
Downstream equipment: Whether the material will enter a washing line, extruder, or pelletizing system.
Site conditions: Available floor space, power supply, feeding method, and layout limitations.
Maintenance expectations: Operating hours, access for servicing, and spare-part requirements.
Photos of the material are useful, especially when the feed has an unusual shape. If possible, provide several examples showing the largest pieces and the general condition of the material.
Do not compare machines on purchase price alone. A more useful comparison includes realistic throughput, output quality, wear-part costs, maintenance access, downtime, and how well the machine fits into the rest of the plant.
Wobide Machinery offers equipment for different stages of plastic size reduction, including single-shaft shredders, swing-ram single-shaft shredders, double-shaft shredders, four-shaft shredders, heavy-duty crushers, pipe and profile crushers, economical crushers, and integrated shredder-crusher machines.
For projects that require more than one processing stage, the company can also assess customized shredding and crushing line configurations. Depending on the application, the line may include conveyors, separation equipment, and cyclone collection.
You can explore the equipment here:
The final configuration should be confirmed against the material, target capacity, output requirements, and site conditions. Where practical, material testing can help establish whether one machine is sufficient or whether a two-stage system is more suitable.
A plastic shredder and a plastic crusher both have a place in recycling, but they solve different problems.
If your material is large, bulky, or difficult to feed, a shredder may be the better starting point. If the feed is manageable and you need smaller flakes, a crusher may be all you need. Where the material requires both primary and secondary size reduction, using the two machines together can make sense.
The most important question is not which machine is generally better. It is which machine can handle your material reliably and produce the output your process requires.
Need help choosing a plastic shredder or crusher?
Send Wobide Machinery a few photos of your material, its approximate dimensions, your required capacity, and the target output size. This information will help the team assess a suitable machine or recycling line for your application.
Contact Wobide Machinery to discuss your plastic recycling requirements.
Not always. A shredder is generally used to break down bulky material, while a crusher is often used to produce smaller flakes. If your process requires a more controlled particle size, a crusher may still be needed after shredding.
That depends on the size and thickness of the lumps and the design of the crusher. Check the feed opening and cutting-chamber dimensions carefully. If the pieces are too large or difficult to feed, primary shredding may be a better option.
No. A smaller screen can help produce smaller flakes, but it may also slow material discharge and reduce throughput. The screen should match the required output and the capacity of the downstream process.
No. An integrated machine may help reduce the need for separate equipment and material transfers, but its suitability depends on feed dimensions, target output, capacity, maintenance access, and plant layout.
Start with the plastic type, maximum feed dimensions, material condition, target capacity, required output size, and downstream process. Photos or material samples can help clarify the application.
Keep foreign objects such as metal out of the feed, follow the manufacturer's maintenance schedule, and inspect the blades and cutting clearance regularly. Correct machine selection and consistent feeding also help avoid unnecessary strain on the cutting system.
