The WHC series heavy-duty crushers are widely used for different kinds of plastic products. The spindle rotor can be customized according to different applications. With unique chamber structure and feeding hopper form, they can further recycle large household appliances shells, car bumpers, rubber thick-walled plastic products, ete, into fine particles. They can also be used as core crushers for various recycling production lines.

*Heavy duty steel construction *Outboard bearing housings to protect the bearings *Optimized crushing chamber design with high-strength wear plates *"V"-shaped rotor for high crushing efficiency *Easy maintenance assisted by the hydraulic system

Product  Advantage

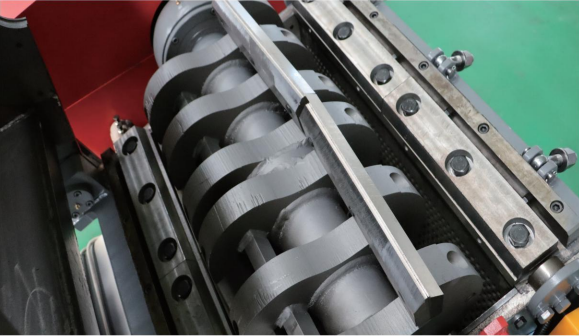

		Spindle rotor is made of high strength welded steel with aunique V-shaped design, All the spindles have passed strict static and dynamie balanee test to ensure smooth and reliable machine operation, We can also design the suitable spindle according to different materials

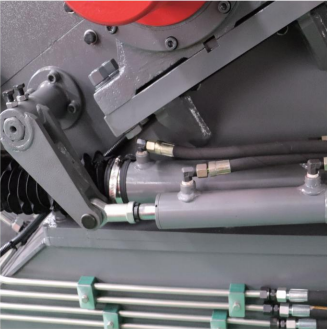

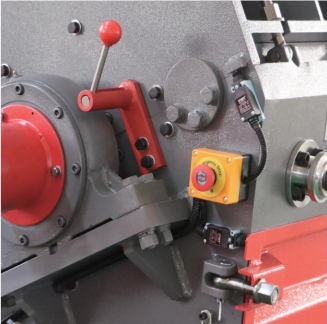

Outboard bearing housing The bearing housing is installed outside the chamber.   The main shaft and the machine body are sealed by sealing ring, which effectively prevents the crushed materials in the chamber from entering the bearing, thereby prolonging the life of the bearing.	Hydraulic opening system The upper and lower body and the screen bracket are hydraulically controlled, which is convenient for machine maintenance and the replacement of blades and screens.	Protection device while replacing blades The main shaft is fixed during the blade replacement process, which makes the process easier.  At the same time, the circuit is disconnected to prevent the misoperation of the machine and protect the safety of operators.

Reference for crushed products

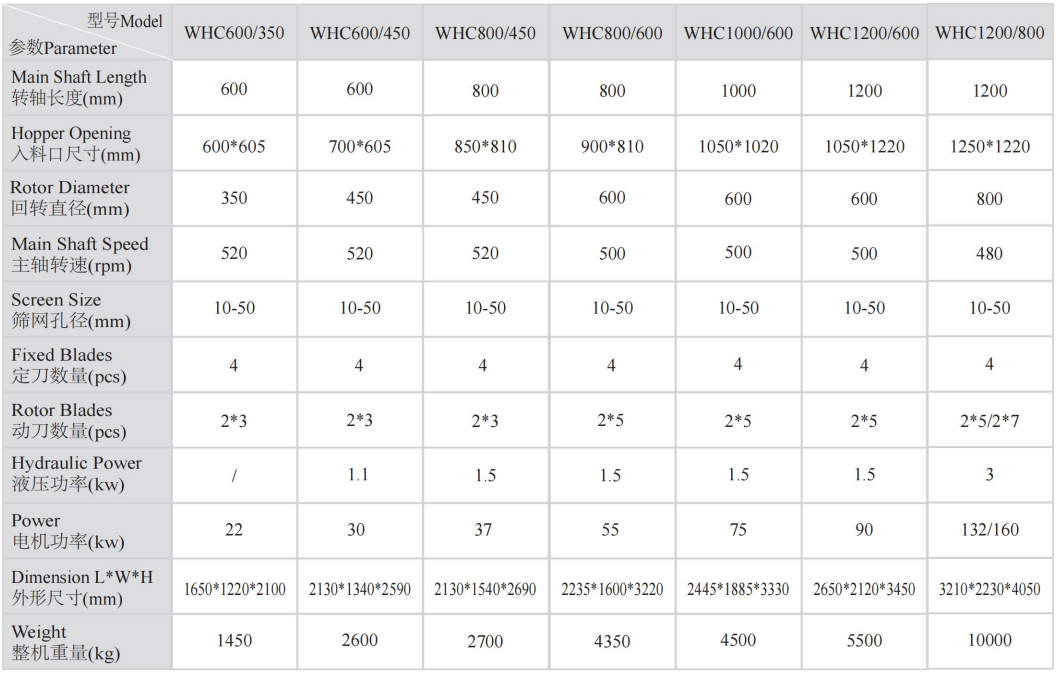

Technical Parameter
