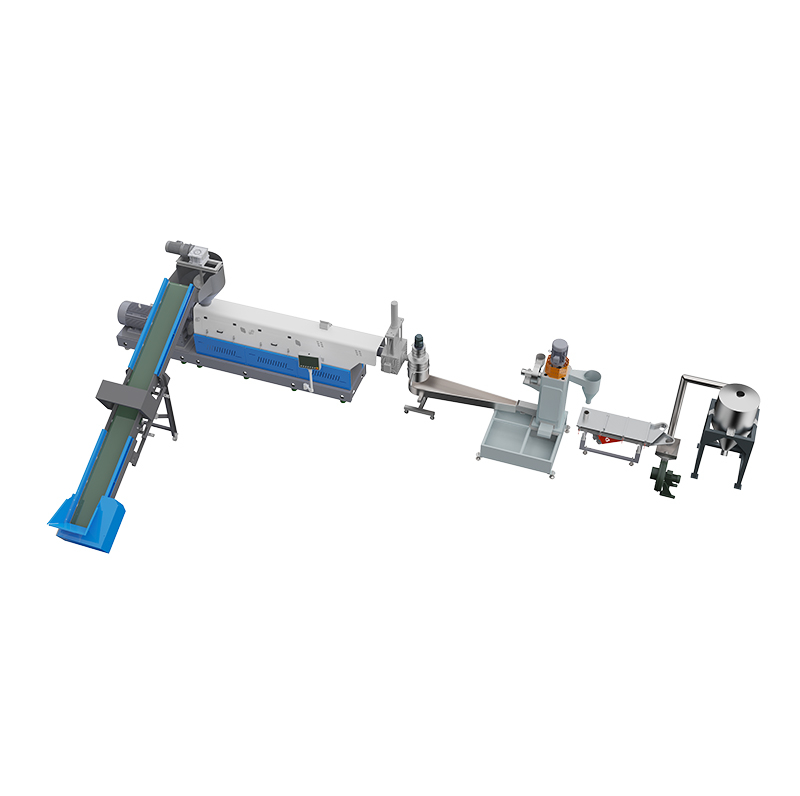

The **Single-Stage Forced Feeding Water Ring Pelletizing Line** is an advanced plastic recycling and pelletizing system specifically designed for processing lightweight, soft, and difficult-to-feed plastic materials. Equipped with a high-efficiency **forced feeding system** and a **water ring pelletizer**, the production line ensures stable material feeding, continuous extrusion, excellent plasticizing performance, and high-quality pellet production. It is widely used for recycling **PE film, PP woven bags, LDPE film, HDPE film, agricultural film, stretch film, raffia, non-woven fabric, plastic flakes, and post-industrial or post-consumer plastic waste**.
Model | WZJ-DQA100 | WZJ-DQA120 | WZJ-DQA130 | WZJ-DQA150 | WZJ-DQA160 | WZJ-DQA180 |
L/D | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
Rotary speed (r/min) | 20-90 | 20-90 | 20-90 | 20-90 | 20-90 | 20-90 |
Capacity(kg/h) | 150-250 | 250-350 | 350-400 | 450-600 | 500-700 | 600-800 |

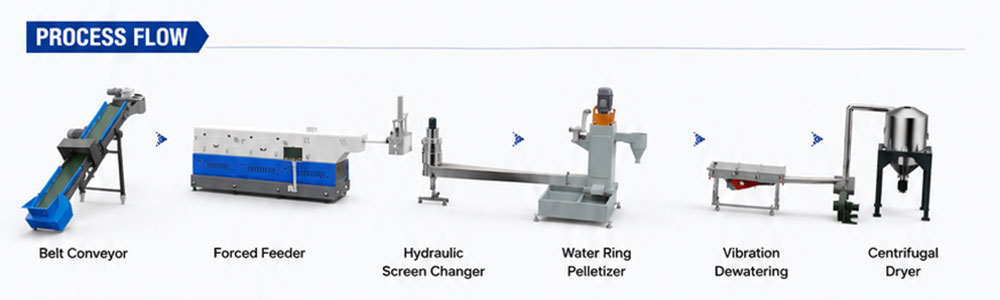

Designed for modern plastic recycling plants, the pelletizing line can be equipped with optional **hydraulic screen changers, vacuum degassing systems, metal separators, automatic feeding conveyors, and customized filtration solutions** to meet different material conditions and production requirements. The compact structure minimizes floor space while simplifying installation and maintenance. The finished recycled pellets are suitable for **film blowing, pipe extrusion, sheet production, injection molding, blow molding, packaging materials, plastic products manufacturing, and reprocessing applications**. With high output, stable pellet quality, and low operating costs, the Single-Stage Forced Feeding Water Ring Pelletizing Line is an ideal solution for manufacturers seeking efficient, cost-effective, and environmentally friendly plastic recycling equipment. WOBIDE also provides customized turnkey pelletizing solutions, technical support, installation guidance, and comprehensive after-sales service to help customers maximize productivity and produce premium recycled plastic pellets for global markets.
